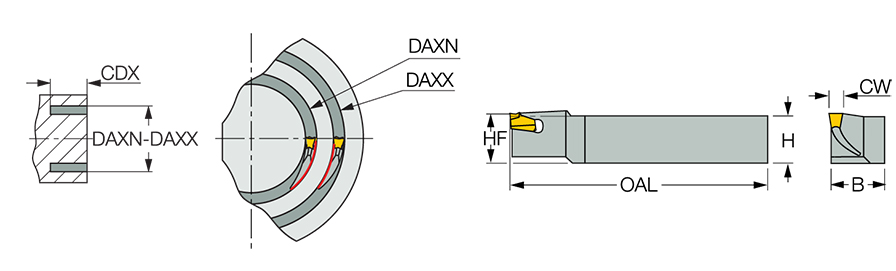

| Shank Width (B) | 25 mm | Overall Length (OAL) | 130 mm |
| Shank Height (H) | 25 mm | Application | | Face Grooving | |
| Cutting Depth Maximum (CDX) | 25 mm | Tool Type | Face Grooving Tools |
| Cutting Width (CW) | 3 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Axial Groove Outside Diameter Maximum (DAXX) | 80 mm | Unit | M |
| Axial Groove Outside Diameter Minimum (DAXN) | 64 mm |
Product Features

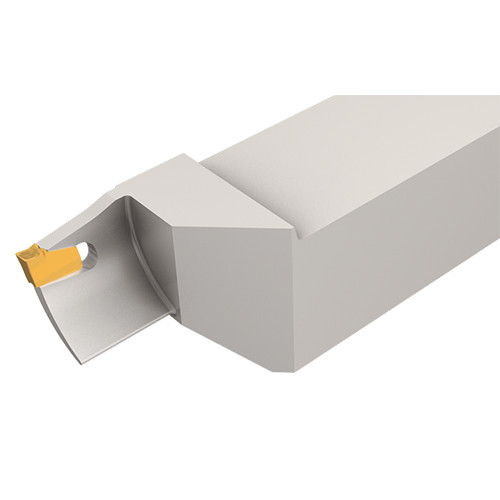

| Family Description | SELF-GRIP face grooving integral shank tools. | FamilyName | SGFFR/L |
| Remarks | Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5520
Name
Face Groove/Turn Indexable Holders
FamilyName
SGFFR/L
BrandName
Iscar
