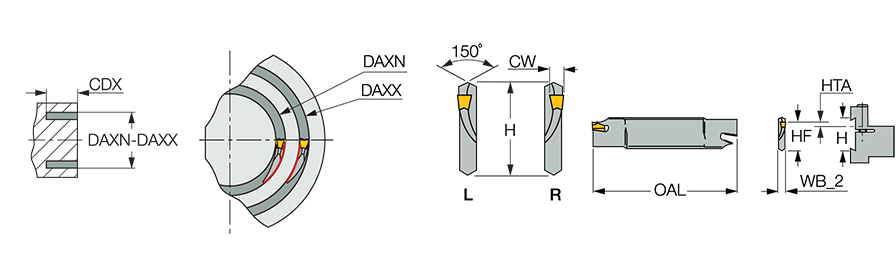

| Shank Height (H) | 32 mm | Overall Length (OAL) | 150 mm |
| Cutting Depth Maximum (CDX) | 35 mm | Application | | Face Grooving | |
| Cutting Width (CW) | 6 mm | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 700 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 148 mm | Unit | M |
Product Features

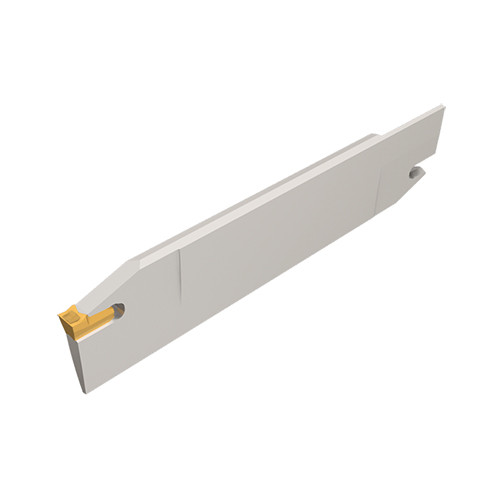

| Family Description | SELF-GRIP face grooving blades | FamilyName | SGFFH |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1870
Name
Face Groove/Turn Indexable Holders
FamilyName
SGFFH
BrandName
Iscar
