DGAQ D82-3-2Z

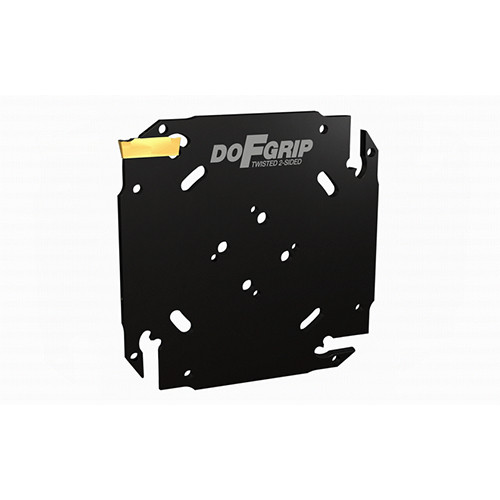

Parting and grooving square adapters carrying DO-GRIP inserts

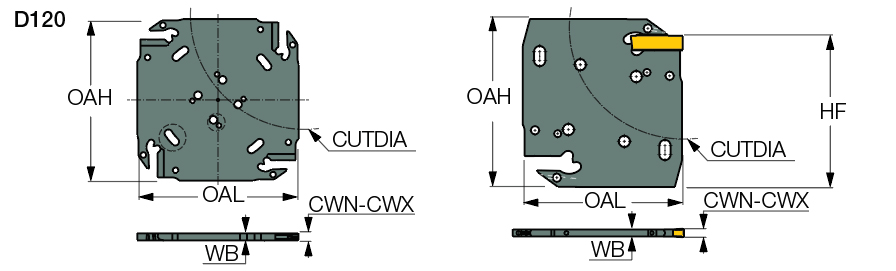

| Body Width (WB) | 2.5 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 3 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 64.4 mm | Measurement Type | Metric |
| Overall Height (OAH) | 64.4 mm | Tool Assembly Length (LTA) | 61 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
Product Features
| Family Description | Parting and grooving square adapters carrying DO-GRIP inserts | FamilyName | DGAQ |
| Remarks | When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1000
Name
Parting Off Indexable Holders
FamilyName
DGAQ
BrandName
Iscar
