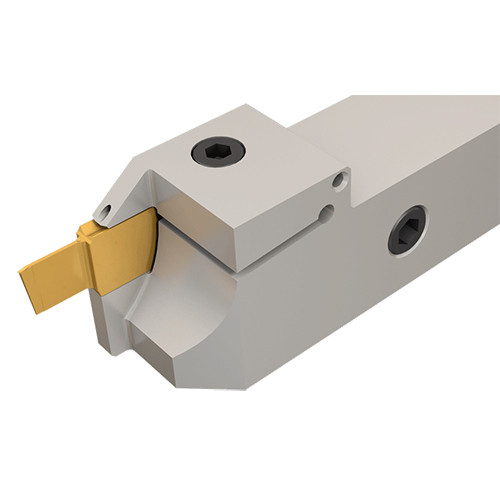

BGTR 19B-D20-JHP
Integral shank reinforced parting and grooving tools with coolant channels carrying narrow double-ended inserts for parting up to .787″ bars.

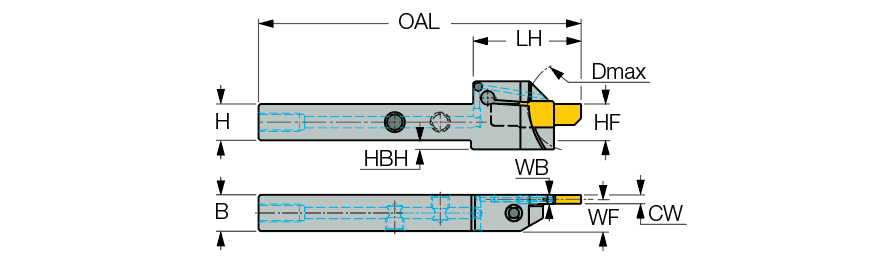

| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.57″ |
| Body Width (WB) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Minimum (CWN) | 0.031″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.059″ | Functional Width (WF) | 0.671″ |
| Overall Length (OAL) | 5.591″ | Head Bottom Offset Height (HBH) | 0.08″ |
| Head Length (LH) | 1.87″ | Tool Assembly Length (LTA) | 2.303″ |
| Cutting Depth Maximum (CDX) | 0.785″ | Unit | I |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Integral shank reinforced parting and grooving tools with coolant channels carrying narrow double-ended inserts for parting up to .787″ bars. | FamilyName | BGTR/L-B-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.9105
Name
Parting Off Indexable Holders
FamilyName
BGTR/L-B-JHP
BrandName
Iscar
