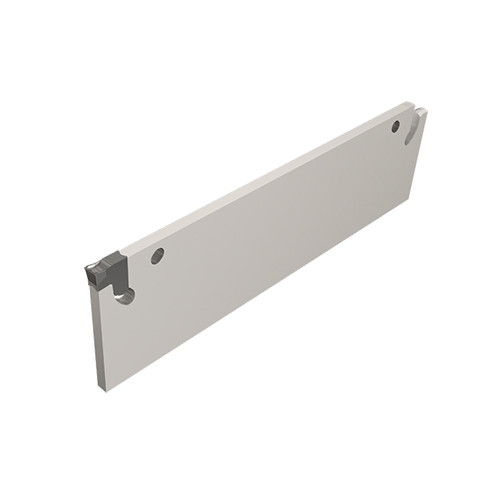

TGFH 22MB-3-L84
Parting and grooving blades for other manufacturers blocks, carrying TANG-GRIP single-ended, tangentially clamped inserts.

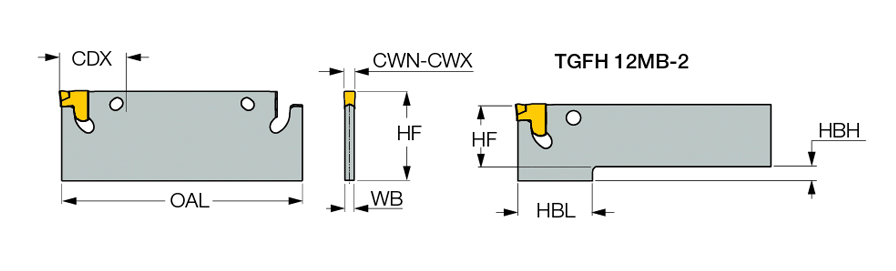

| Body Width (WB) | 2.5 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 2.8 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 3.5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 84 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 16 mm | Body Width_2 (WB_2) | 2.5 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 26 mm |
| Number of Pocket (NOP) | 2 | Unit | M |
Product Features
| Family Description | Parting and grooving blades for other manufacturers blocks, carrying TANG-GRIP single-ended, tangentially clamped inserts. | FamilyName | TGFH-MB |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0430
Name
Parting Off Indexable Holders
FamilyName
TGFH-MB
BrandName
Iscar
