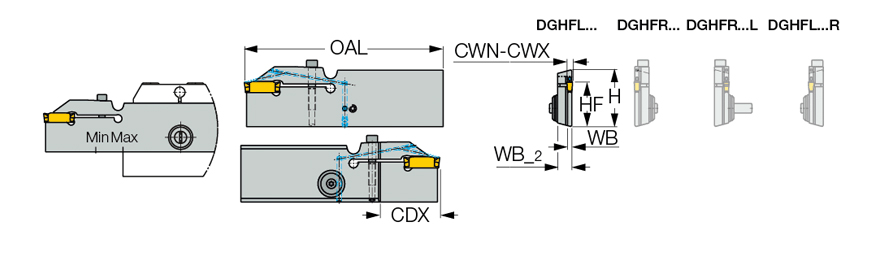

| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Width (WB) | 2.4 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 3 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 3.18 mm | Measurement Type | Metric |
| Overall Length (OAL) | 111 mm | Body Width_2 (WB_2) | 7.9 mm |
| Cutting Depth Maximum (CDX) | 33 mm | Tool Assembly Length (LTA) | 61.97 mm |
| Functional Length (LF) | 111 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features

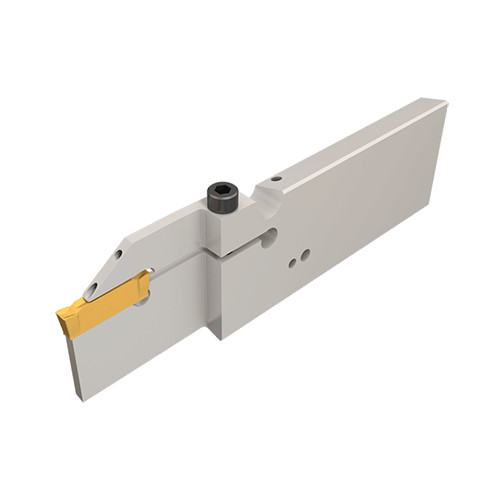

| Family Description | Parting and grooving reinforced blades with channels for high-pressure coolant carrying DO-GRIP inserts. | FamilyName | DGFHR/L-BC-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1870
Name
Parting Off Indexable Holders
FamilyName
DGFHR/L-BC-JHP
BrandName
Iscar
