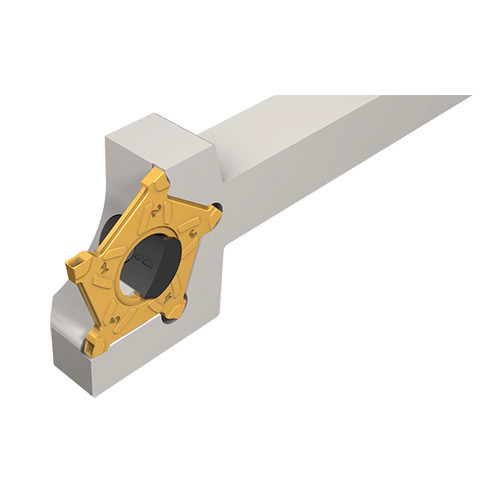

PCHR 16-D22-2-IQ
Grooving and parting tools carrying inserts with 5 cutting edges.

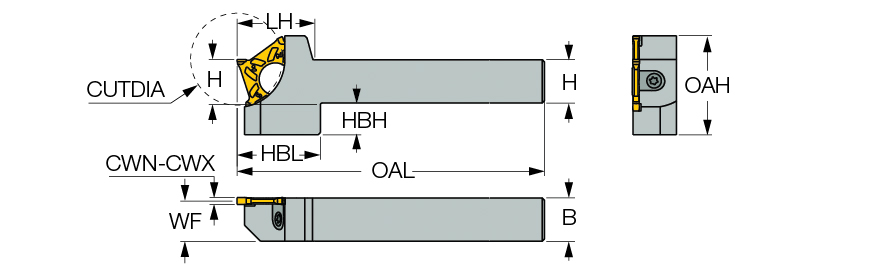

Shank Height (H) | 16 mm | Body Material | Steel |
Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
Cutting Width Minimum (CWN) | 2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 22 mm |
Cutting Width Maximum (CWX) | 2.4 mm | Cutting Direction (HAND) | Right Hand |
Overall Length (OAL) | 120 mm | Measurement Type | Metric |
Head Length (LH) | 26.9 mm | Tool Assembly Length (LTA) | 32.81 mm |
Overall Height (OAH) | 25.5 mm | Unit | M |
Application | | Ext. Grooving | Parting | |

Product Features
Family Description | Grooving and parting tools carrying inserts with 5 cutting edges. | FamilyName | PCHR/L-D-IQ |

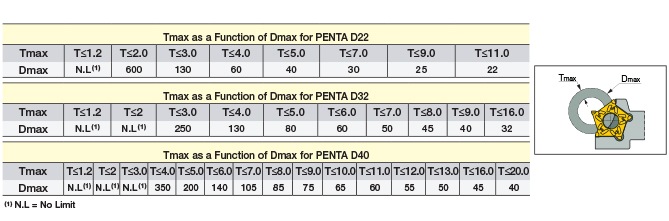

Remarks | For parting and grooving range, click on More Info | BrandName | Iscar |
COO | Israel |
Shipping Info
Weight per item
0.3480
Name
Parting Off Indexable Holders
FamilyName
PCHR/L-D-IQ
BrandName
Iscar
