DGFH 32-2-JHP
Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts.

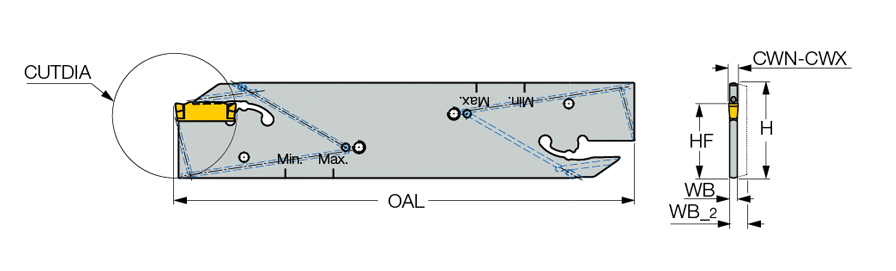

| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Width (WB) | 1.8 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 1.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 39 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm | Body Width_2 (WB_2) | 2.5 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 29.8 mm |
| Number of Pocket (NOP) | 2 | Unit | M |
Product Features
| Family Description | Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts. | FamilyName | DGFH-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1080
Name
Parting Off Indexable Holders
FamilyName
DGFH-JHP
BrandName
Iscar
