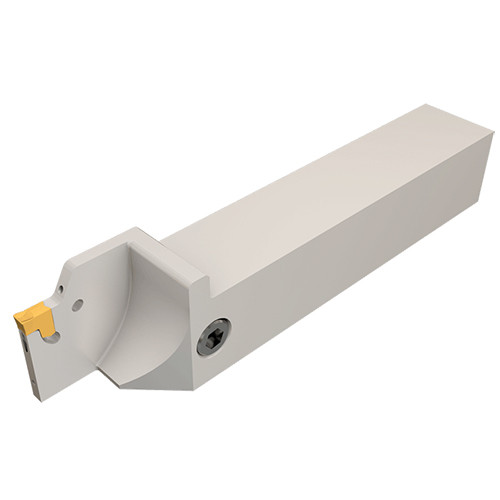

TGTR 19-4JHP
Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.
| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Body Width (WB) | 0.134″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.146″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.1″ |
| Cutting Width Maximum (CWX) | 0.177″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.724″ | Measurement Type | Inch |
| Head Length (LH) | 1.378″ | Tool Assembly Length (LTA) | 1.81″ |
| Overall Height (OAH) | 1″ | Unit | I |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | FamilyName | TGTR/L-JHP |
| Remarks | For more details click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6746
Name
Parting Off Indexable Holders
FamilyName
TGTR/L-JHP
BrandName
Iscar
