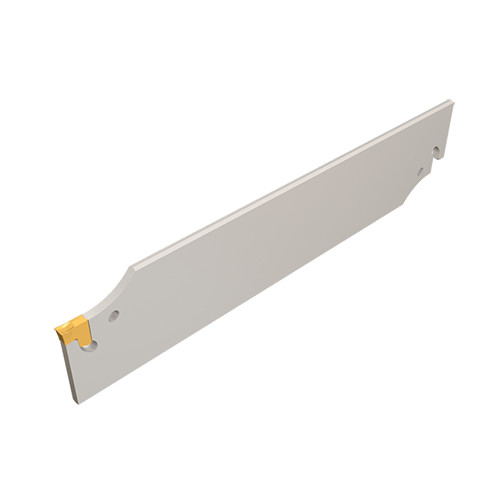

TGFH 45-5
Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life.

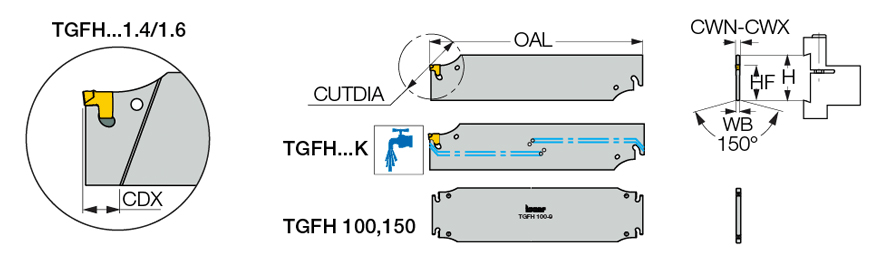

| Shank Height (H) | 45 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 4.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 160 mm |
| Cutting Width Maximum (CWX) | 5.5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 225 mm | Measurement Type | Metric |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 4 mm |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 33.57 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life. | FamilyName | TGFH/R/L |

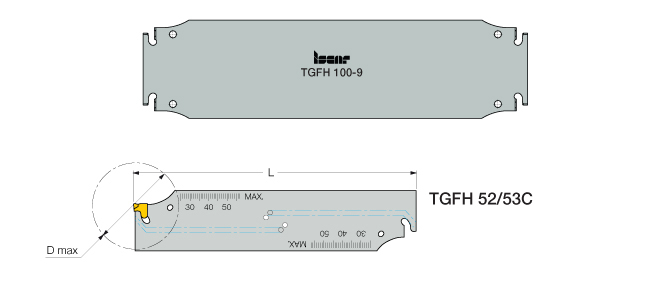

| Remarks | For TGFH ..C-. and for TGFH 100-9 drawings, click More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3440
Name
Parting Off Indexable Holders
FamilyName
TGFH/R/L
BrandName
Iscar
