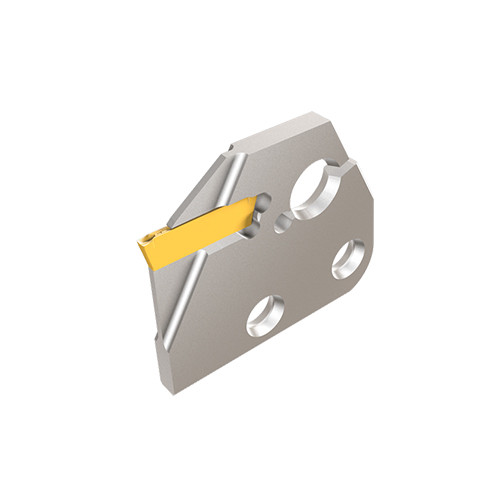

DGAD 1.4B-D16
Parting and grooving screw-clamped adapters for DO-GRIP double-ended inserts.

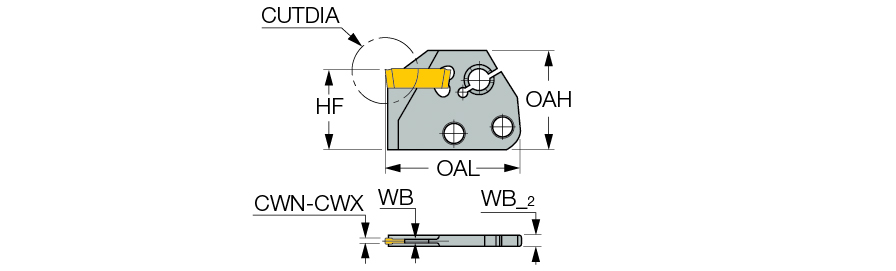

| Body Width (WB) | 1 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.4 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 16 mm |
| Cutting Width Maximum (CWX) | 1.4 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 36.8 mm | Measurement Type | Metric |
| Overall Height (OAH) | 30.3 mm | Body Width_2 (WB_2) | 3.2 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 36.8 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | Parting and grooving screw-clamped adapters for DO-GRIP double-ended inserts. | FamilyName | DGAD-B-D |
| Remarks | Up to 3 mm depth, without any limitation on the diameter DG..1.0 insert can also be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0250
Name
Parting Off Indexable Holders
FamilyName
DGAD-B-D
BrandName
Iscar
