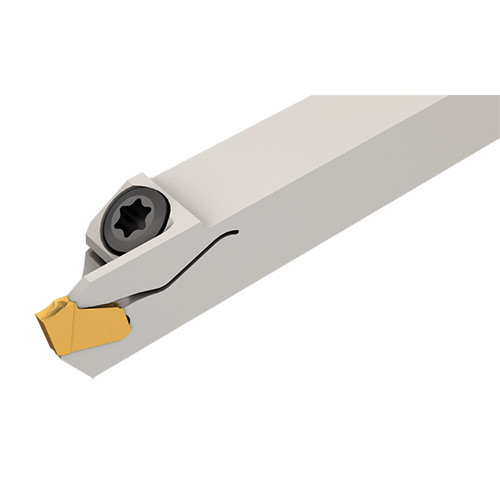

SGFL 12B-2D24 SH
Integral shank, short head, parting and grooving toolholder. Used for CNC and Swiss automatics.

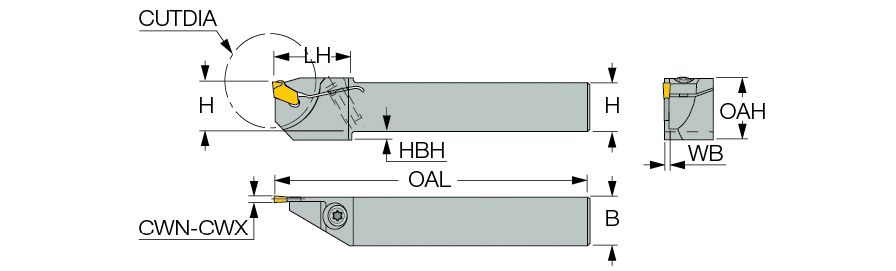

| Shank Height (H) | 12 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Body Width (WB) | 1.6 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 24 mm |
| Cutting Width Maximum (CWX) | 2.69 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Head Length (LH) | 18 mm | Tool Assembly Length (LTA) | 28 mm |
| Overall Height (OAH) | 13 mm | Unit | M |
Product Features
| Family Description | Integral shank, short head, parting and grooving toolholder. Used for CNC and Swiss automatics. | FamilyName | SGFR/L-B-D-SH |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1840
Name
Parting Off Indexable Holders
FamilyName
SGFR/L-B-D-SH
BrandName
Iscar
