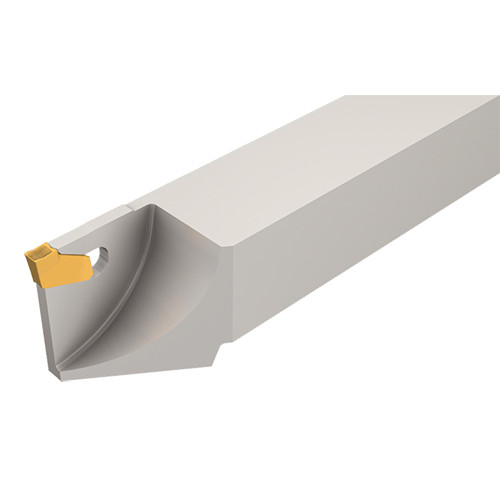

SGTFL 2020-4D 45
SELF-GRIP reinforced tool for parting and grooving
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 3.3 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 45 mm |
| Cutting Width Minimum (CWN) | 3.54 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 4.52 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Tool Assembly Length (LTA) | 33.19 mm |
| Head Length (LH) | 23 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | SELF-GRIP reinforced tool for parting and grooving | FamilyName | SGTFR/L-D |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3880
Name
Parting Off Indexable Holders
FamilyName
SGTFR/L-D
BrandName
Iscar
