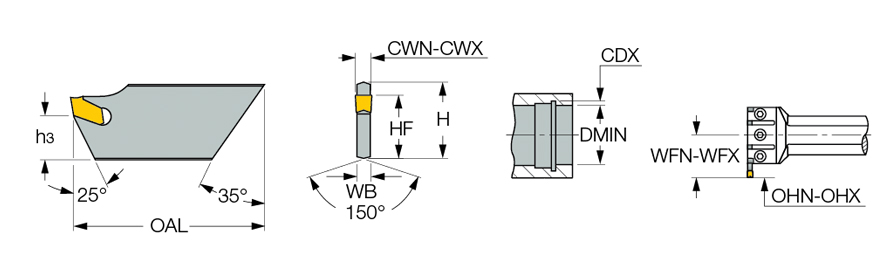

| Shank Height (H) | 26 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 3.54 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 4.52 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Body Width_2 (WB_2) | 3.2 mm |
| Minimum Bore Diameter (DMIN) | 70 mm | Tool Assembly Length (LTA) | 18.97 mm |
| Application | | Int. Grooving | | Unit | M |
| Body Material | Steel |
Product Features

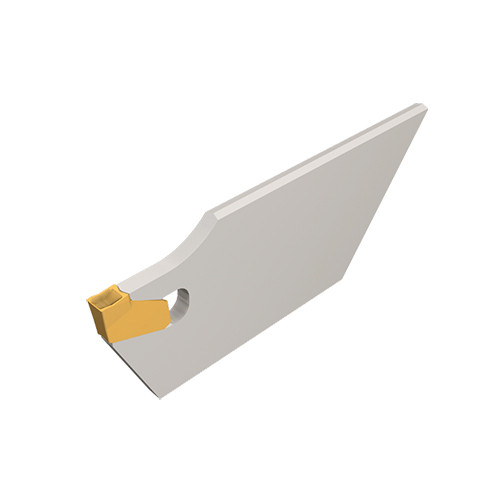

| Family Description | Internal grooving blades for GHIC...-70 bars | FamilyName | SGFH 26-M |

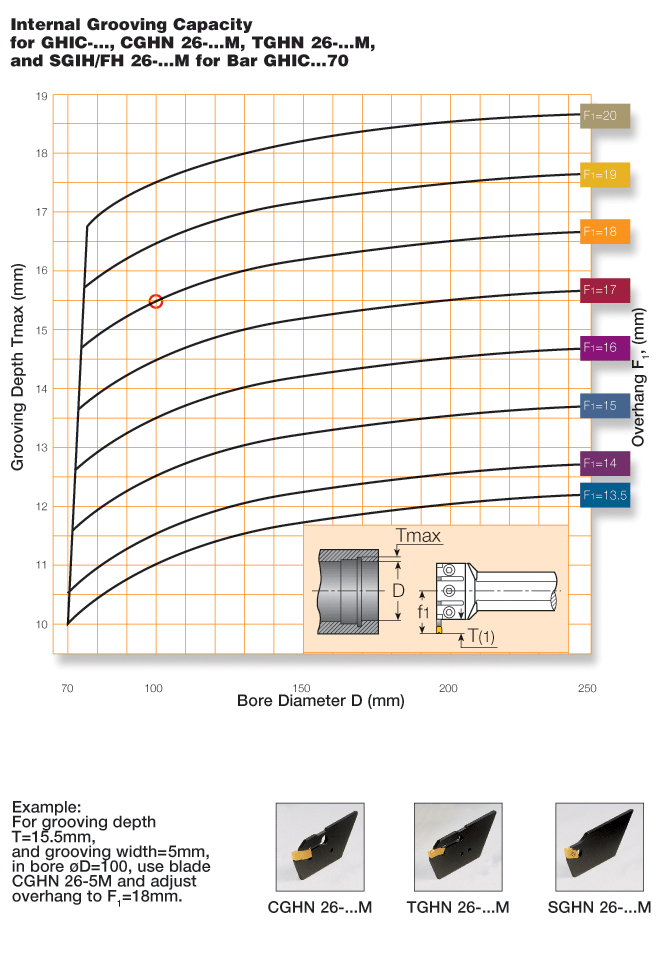

| Remarks | Grooving depth (Tmax-r) varies in conformance with blade's overhang (f and F1) and it depends on the bore diameter (D). For grooving capacity, click More Info SGFH...M can be modified from external double-sided blades | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0520
Name
Parting Off Indexable Holders
FamilyName
SGFH 26-M
BrandName
Iscar
