SGTFL 1010-2

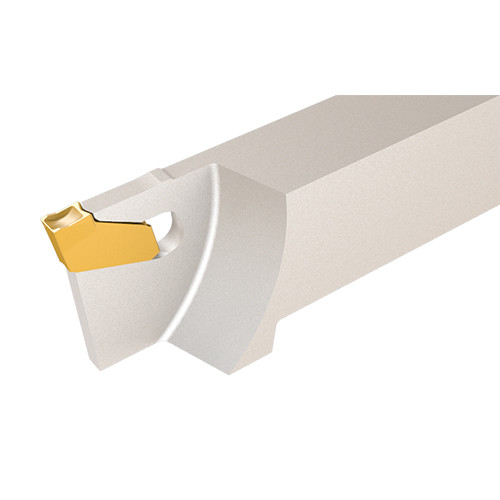

SELF-GRIP integral shank tool for parting and grooving

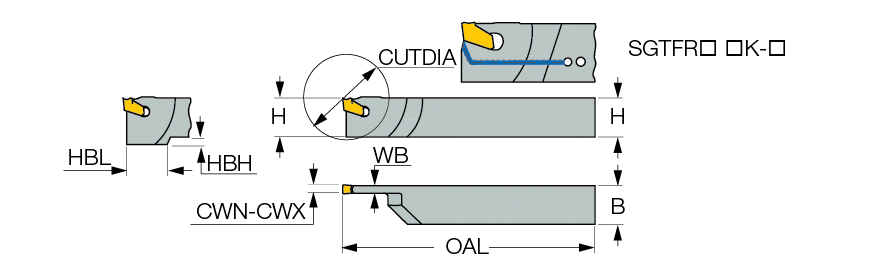

| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 1.6 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 28 mm |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2.69 mm | Measurement Type | Metric |
| Overall Length (OAL) | 86 mm | Tool Assembly Length (LTA) | 27 mm |
| Head Length (LH) | 17 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | SELF-GRIP integral shank tool for parting and grooving | FamilyName | SGTFR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0970
Name
Parting Off Indexable Holders
FamilyName
SGTFR/L
BrandName
Iscar
