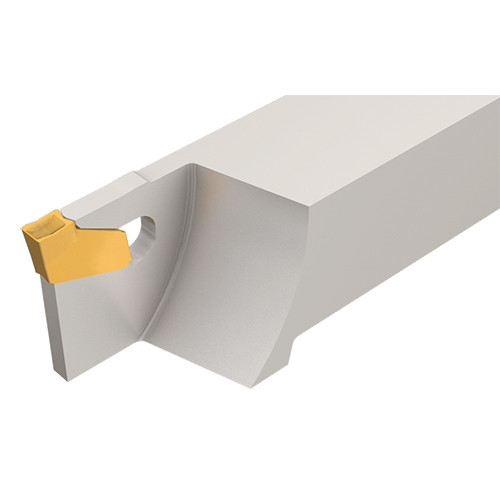

SGTFL 9.5-2
SELF-GRIP integral shank tool for parting & grooving.

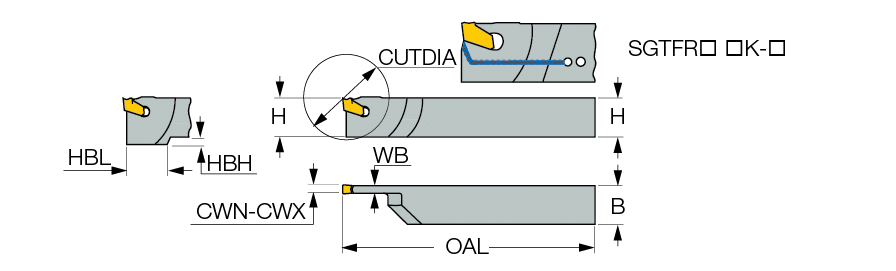

| Shank Height (H) | 3/8″ | Body Material | Steel |
| Shank Width (B) | 3/8″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.063″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.13″ |
| Cutting Width Minimum (CWN) | 0.071″ | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.106″ | Measurement Type | Inch |
| Overall Length (OAL) | 3″ | Tool Assembly Length (LTA) | 1.093″ |
| Head Length (LH) | 0.7″ | Unit | I |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | SELF-GRIP integral shank tool for parting & grooving. | FamilyName | SGTFR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1940
Name
Parting Off Indexable Holders
FamilyName
SGTFR/L
BrandName
Iscar
