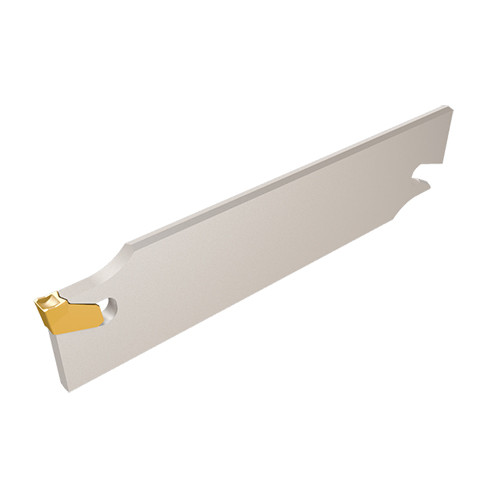

SGFH 32-3
SELF-GRIP blades for parting and grooving with single-ended inserts. Blades with coolant holes are designated with "K".

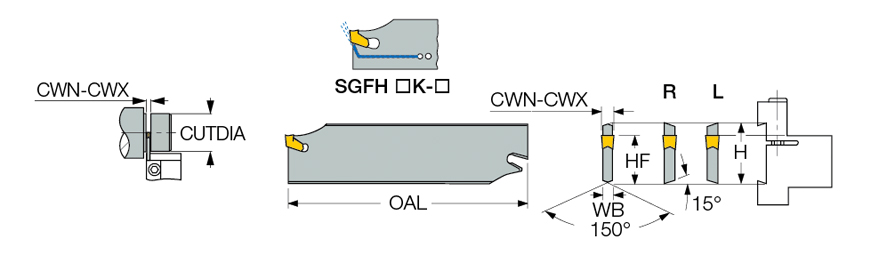

| Shank Height (H) | 32 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 2.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 100 mm |
| Cutting Width Maximum (CWX) | 3.53 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 2.4 mm |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 30.64 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | SELF-GRIP blades for parting and grooving with single-ended inserts. Blades with coolant holes are designated with "K". | FamilyName | SGFH/R/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1110
Name
Parting Off Indexable Holders
FamilyName
SGFH/R/L
BrandName
Iscar
