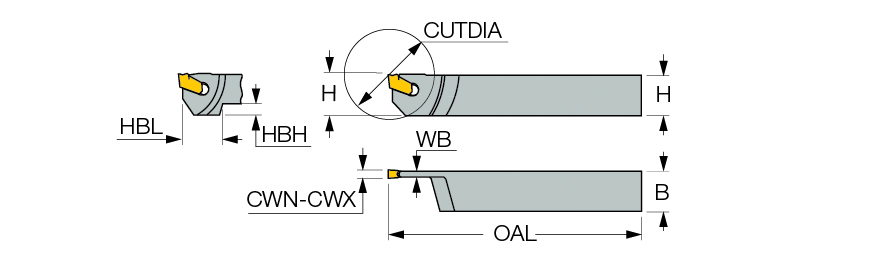

| Shank Height (H) | 8 mm | Body Material | Steel |
| Shank Width (B) | 8 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 1.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 26 mm |
| Cutting Width Minimum (CWN) | 1.6 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 1.6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 120 mm | Head Bottom Offset Height (HBH) | 4 mm |
| Head Length (LH) | 14 mm | Tool Assembly Length (LTA) | 24.75 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
Product Features

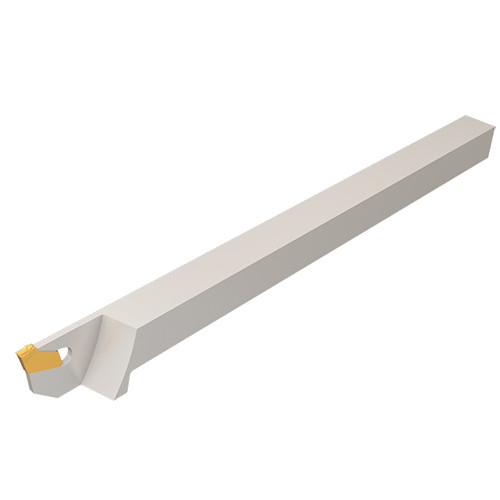

| Family Description | SELF-GRIP integral shank tool for Swiss automatic machines. | FamilyName | SGAFR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0800
Name
Parting Off Indexable Holders
FamilyName
SGAFR/L
BrandName
Iscar
