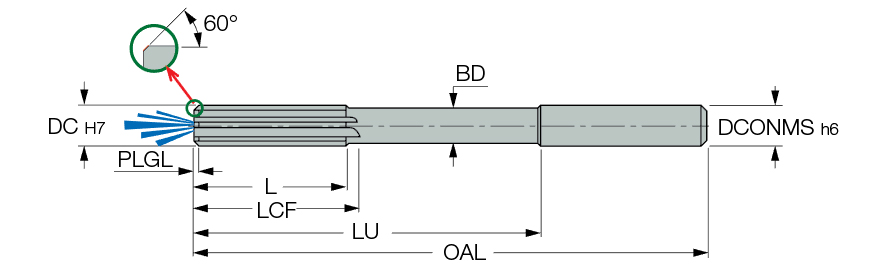

| Cutting Diameter (DC) | 8 mm | Coating | evotec for reamers UOP |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 65 mm | Length Chip Flute (LCF) | 20 mm |
| Cutting Edge Length (L) | 15 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Tool Type | Solid Carbide Reamers |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Overall Length (OAL) | 101 mm | Body Diameter (BD) | 6.4 mm |
| Grade | EVO | Unit | M |
Product Features
| Family Description | MTR UOP Straight flute PVD coated solid carbide reamers, with cylindrical shank and coolant holes for high speed reaming. Unequal pitch for chatter dampening. | COO | Italy |
| Remarks | EVO is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology. Hole tolerance: H7 manufacturing tolerance according to DIN 1420 |
Shipping Info
Weight per item
0.0660
