‎MM ESB-G 100-13 T06 IC08

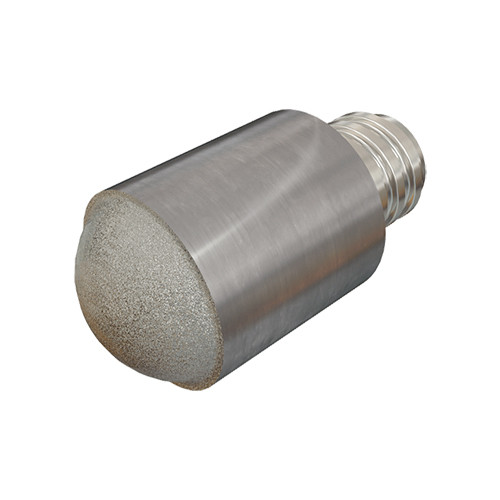

MULTI-MASTER, interchangeable solid carbide, ball nose blank heads.

Item # ISC8421672

Brand: Iscar

Mfr#: 8421672

Applicable Material

| Aluminum / Non-Ferrous Materials |

Measurement Type

Metric

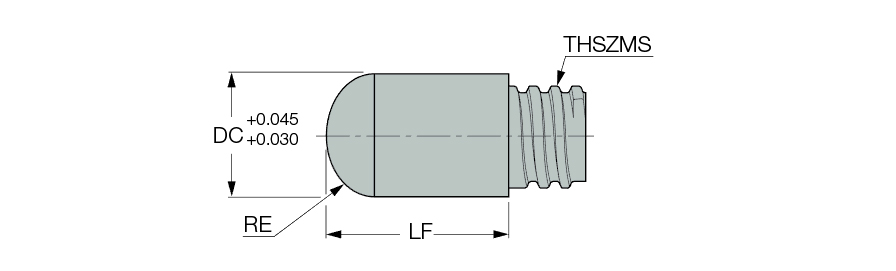

Cutting Diameter (DC)

10 mm

Corner Radius (RE)

5.2 mm

Connection Thread Nominal Size Machine Side (THSZMS)

T06

Coating

Uncoated

Grade

IC08

Body Material

Carbide

Cutting Edge Material

Carbide

Unit

Product Features

Family Description

MULTI-MASTER, interchangeable solid carbide, ball nose blank heads.

COO

Israel

Remarks

For tightening torque, click on More Info. Do not apply lubricant to the threaded connection.

Weight per item

0.0021
