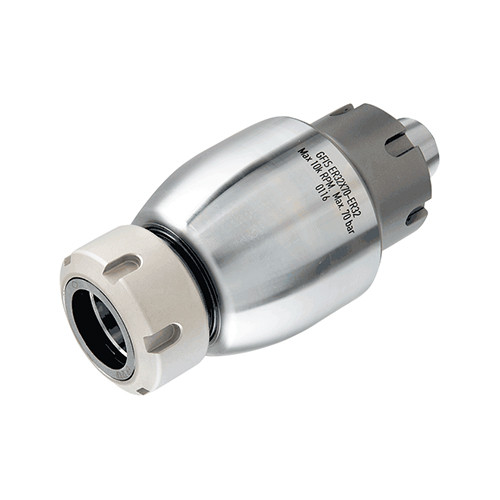

GFIS ER32X70-ER32
A floating reamer collet chuck that keeps the system completely rigid until it reaches a steady state of reaming. It only starts floating once the reamer penetrates into the bore and the cutting forces are applied.

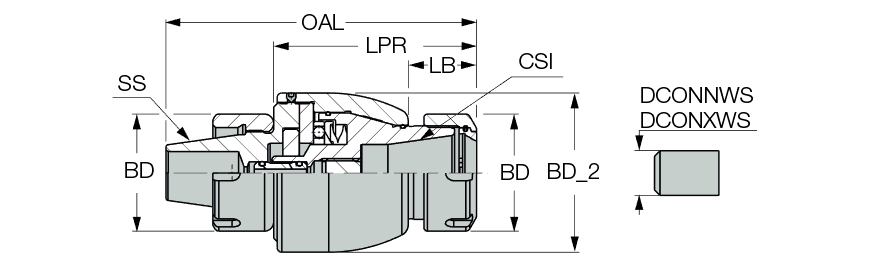

| Connection Size (CSI) | ER32 | Overall Length (OAL) | 133 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
| Radial Float (RFI) | 0.22 mm | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | A floating reamer collet chuck that keeps the system completely rigid until it reaches a steady state of reaming. It only starts floating once the reamer penetrates into the bore and the cutting forces are applied. | FamilyName | GFIS ER-ER |
| Remarks | Maximum 10K RPM Angular floating range 1.0° For Reaming 3-20 mm shank diameter range only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
1.8920
Name
Reamer Holders
FamilyName
GFIS ER-ER
BrandName
Iscar
