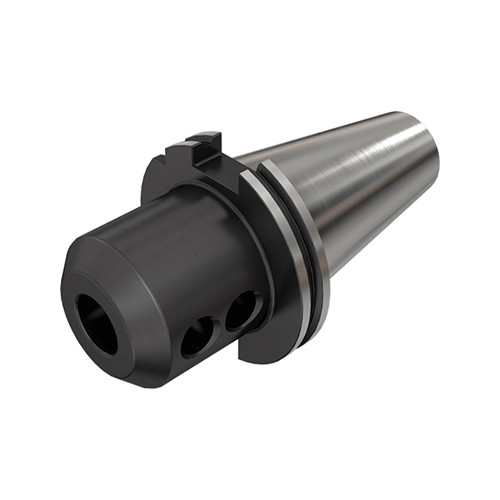

DIN69871 50 EM20X 63E
DIN 69871 form AD taper shank drill holders with DIN 6359-HE for DIN 1835 form E whistle notch shanks

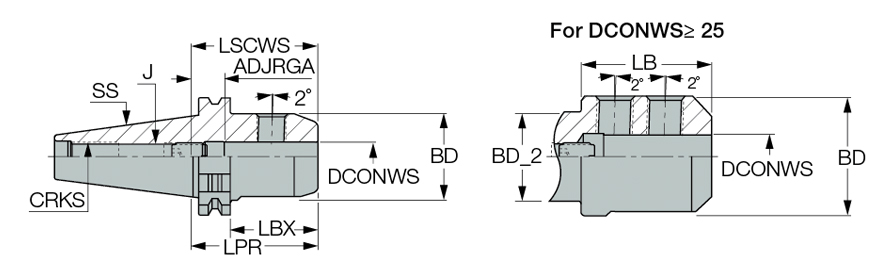

| Shank Size (SS) | 50 | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 63 mm | Measurement Type | Metric |
| Body Length (LB) | 43.9 mm | Body Material | Steel |
| Body Diameter (BD) | 52 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Connection Retention Knob Thread Size (CRKS) | M24 | Unit | M |
Product Features
| Family Description | DIN 69871 form AD taper shank drill holders with DIN 6359-HE for DIN 1835 form E whistle notch shanks | FamilyName | DIN69871-EM (DIN 6359-HE) |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
3.3000
Name
Drill Chucks & Adapters
FamilyName
DIN69871-EM (DIN 6359-HE)
BrandName
Iscar
