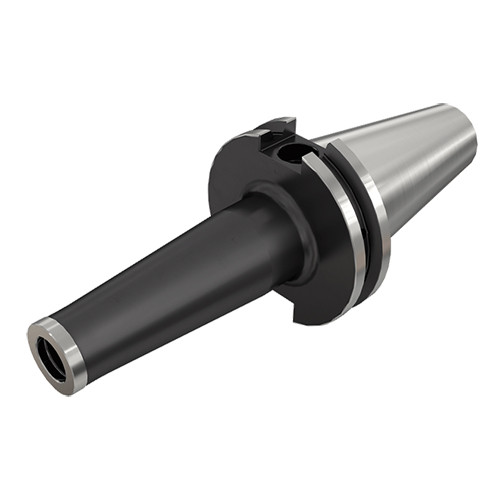

CAT50 ODP M10X3.000
FLEXFIT threaded adaptations with integral Caterpillar form ADB tapered shanks.

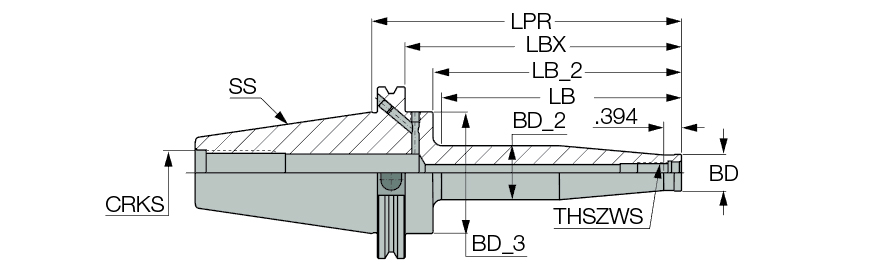

| Shank Size (SS) | 50 | Connection Retention Knob Thread Size (CRKS) | 1-8 |
| Protruding Length (LPR) | 3″ | Tool Type | DIN 69871 |
| Body Length (LB) | 1.405″ | Measurement Type | Inch |
| Body Diameter (BD) | 2.752″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M10 | Unit | I |
Product Features
| Family Description | FLEXFIT threaded adaptations with integral Caterpillar form ADB tapered shanks. | FamilyName | CAT-ODP |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
6.9335
Name
Drill Chucks & Adapters
FamilyName
CAT-ODP
BrandName
Iscar
