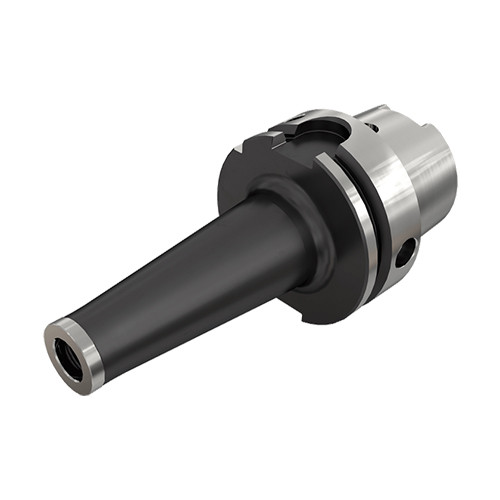

HSK A63 ODP16X59
FLEX-FIT Threaded Adaptation with HSK DIN 69893/A tapered shanks.

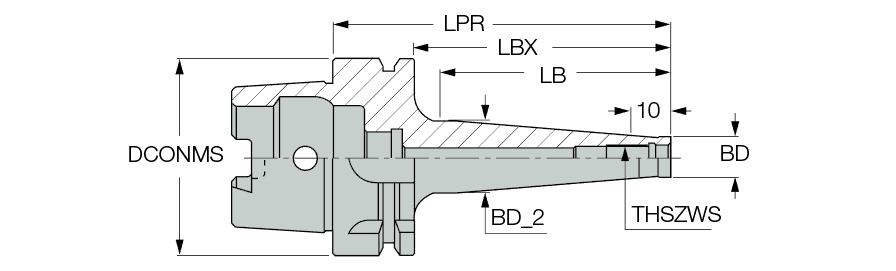

| Shank Size (SS) | 63 | Tool Type | HSK |
| Protruding Length (LPR) | 59 mm | Measurement Type | Metric |
| Body Length (LB) | 25 mm | Body Material | Steel |
| Body Diameter (BD) | 34.6 mm | Connection Code Machine Side (CCMS) | HSK |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Unit | M |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 |
Product Features
| Family Description | FLEX-FIT Threaded Adaptation with HSK DIN 69893/A tapered shanks. | FamilyName | HSK A-ODP (FLEX-FIT) |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.8710
Name
Drill Chucks & Adapters
FamilyName
HSK A-ODP (FLEX-FIT)
BrandName
Iscar
