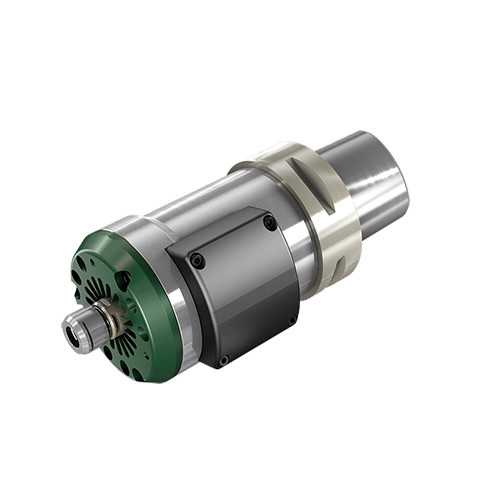

TJS GJET C5
Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding.

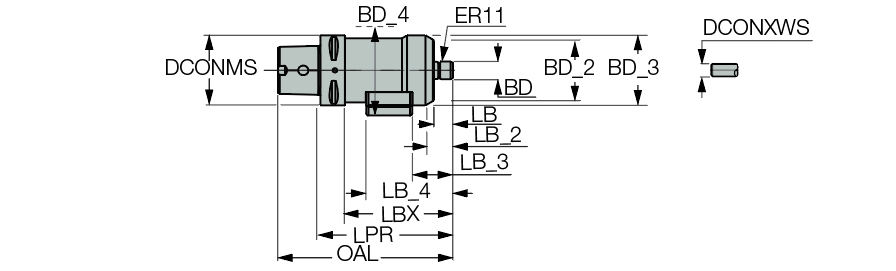

| Shank Size (SS) | C5 | Measurement Type | Metric |
| Functional Length (LF) | 112 mm | Connection Diameter Machine Side (DCONMS) | 50 mm |
| Protruding Length (LPR) | 129 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Overall Length (OAL) | 159 mm | Body Material | Steel |
| Body Diameter (BD) | 16 mm | Unit | M |
Product Features
| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | FamilyName | TJS-GJET-C# |

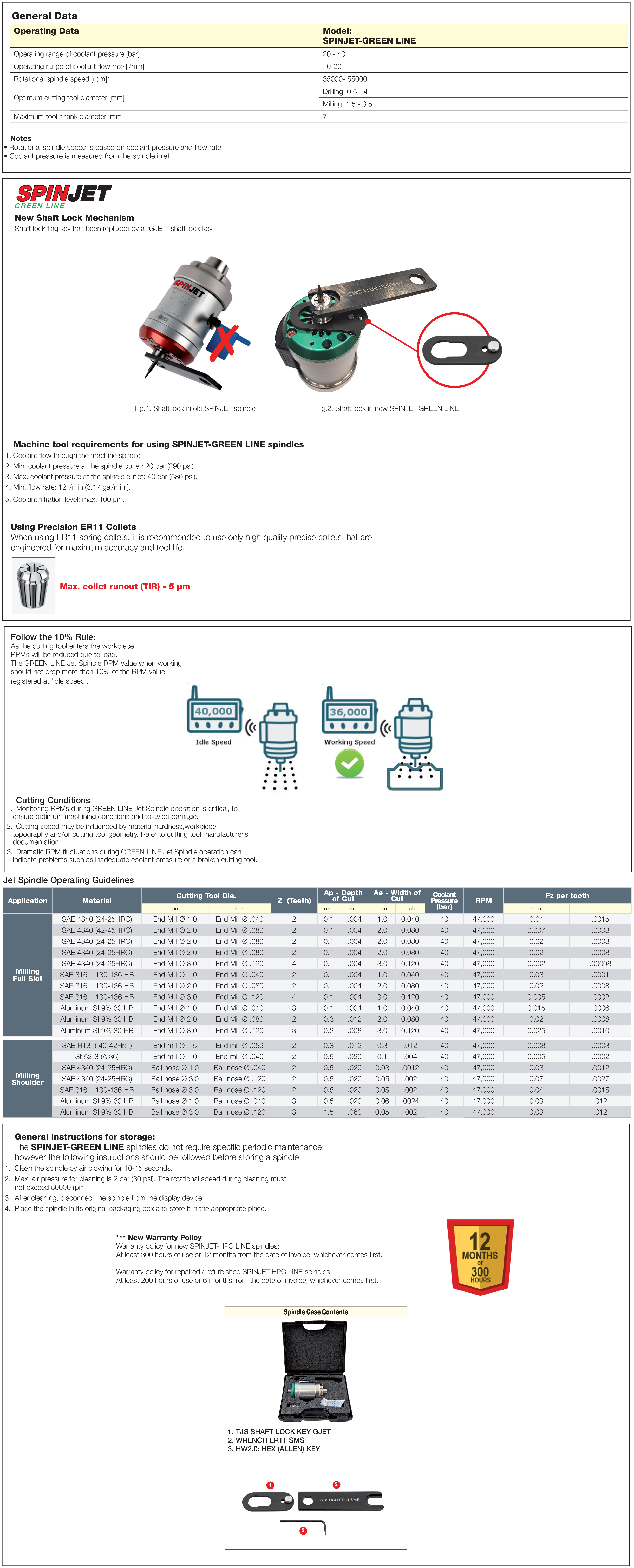

| Remarks | Minimum coolant pressure 20 bar and flow rate 12 l/min The spindle provides only external strong coolant jet around the tool Battery not supplied For user guide, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.5000
Name
HSM Spindles
FamilyName
TJS-GJET-C#
BrandName
Iscar
