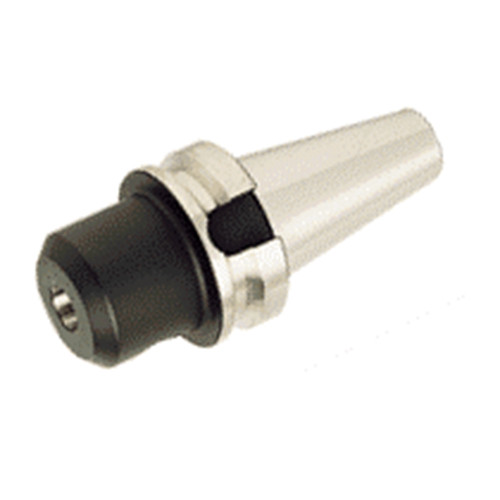

BT50 EM 1X4.500
DIN6359 / DIN 1835 form B Weldon Endmill Holders with BT MAS-403 ADB tapered shanks

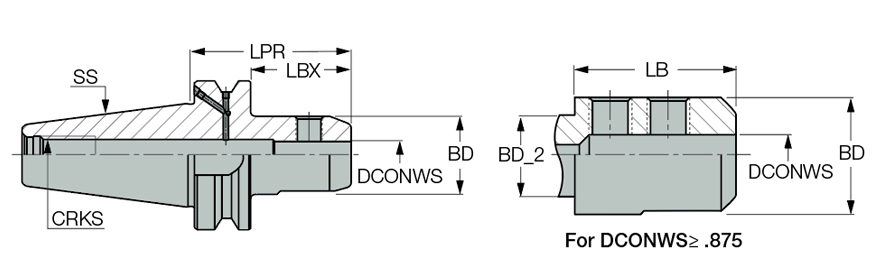

| Connection Diameter Workpiece Side (DCONWS) | 1″ | Shank Size (SS) | 50 |
| Body Diameter (BD) | 2.559″ | Tool Type | BT |
| Protruding Length (LPR) | 4-1/2″ | Body Material | Steel |
| Overall Length (OAL) | 8.508″ | Connection Code Machine Side (CCMS) | BT |
| Measurement Type | Inch | Unit | I |
Product Features
| Family Description | DIN6359 / DIN 1835 form B Weldon Endmill Holders with BT MAS-403 ADB tapered shanks | FamilyName | BT-EM (DIN 1835 Form B) |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
10.7696
Name
End Mill Holders
FamilyName
BT-EM (DIN 1835 Form B)
BrandName
Iscar
