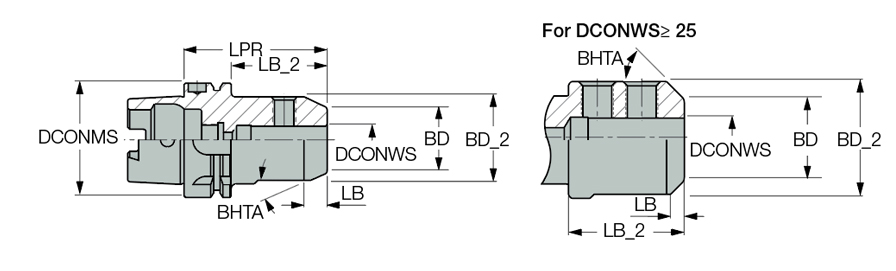

| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Tool Type | HSK |
| Body Diameter (BD) | 56 mm | Body Length (LB) | 8 mm |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Connection Code Machine Side (CCMS) | HSK |
| Measurement Type | Metric | Unit | M |
| Shank Size (SS) | 100 |
Product Features

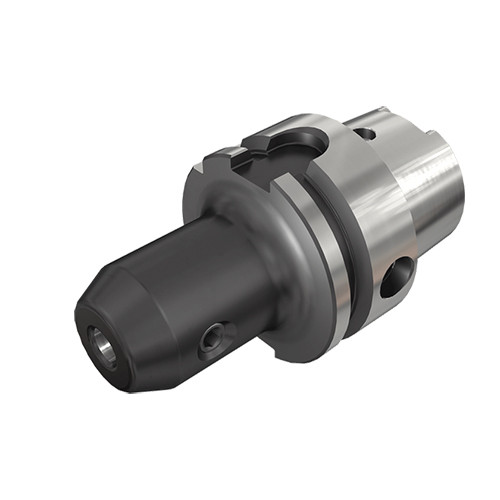

| Family Description | DIN6359 side clamp holders for DIN 1835 form B Weldon shanks with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-EM (DIN 1835 Form B) |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
3.8540
Name
End Mill Holders
FamilyName
HSK A-EM (DIN 1835 Form B)
BrandName
Iscar
