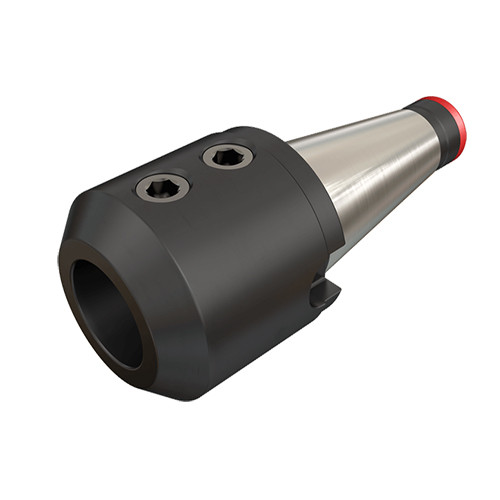

DIN2080 50 EM25X 80
DIN 6359/DIN 1835 form B endmill Weldon holders with DIN 2080 AD tapered shanks.

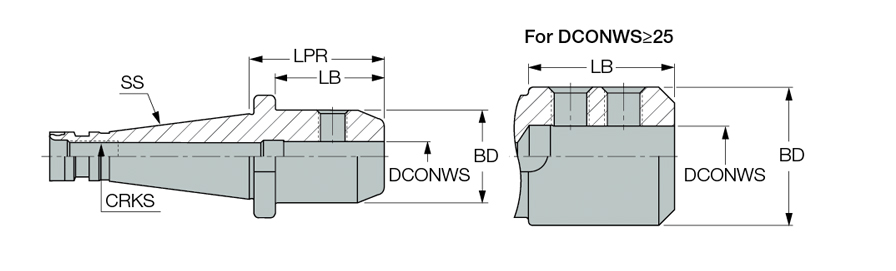

| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Shank Size (SS) | 50 |
| Body Diameter (BD) | 65 mm | Tool Type | DIN 2080 |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Overall Length (OAL) | 206.8 mm | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | DIN 6359/DIN 1835 form B endmill Weldon holders with DIN 2080 AD tapered shanks. | FamilyName | DIN2080-EM |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
3.9610
Name
End Mill Holders
FamilyName
DIN2080-EM
BrandName
Iscar
