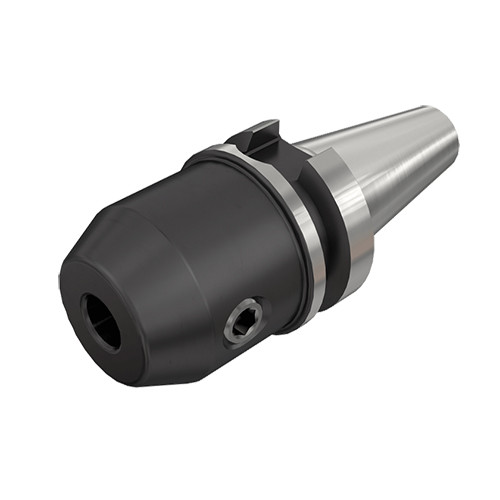

BT30 FC EM20X80

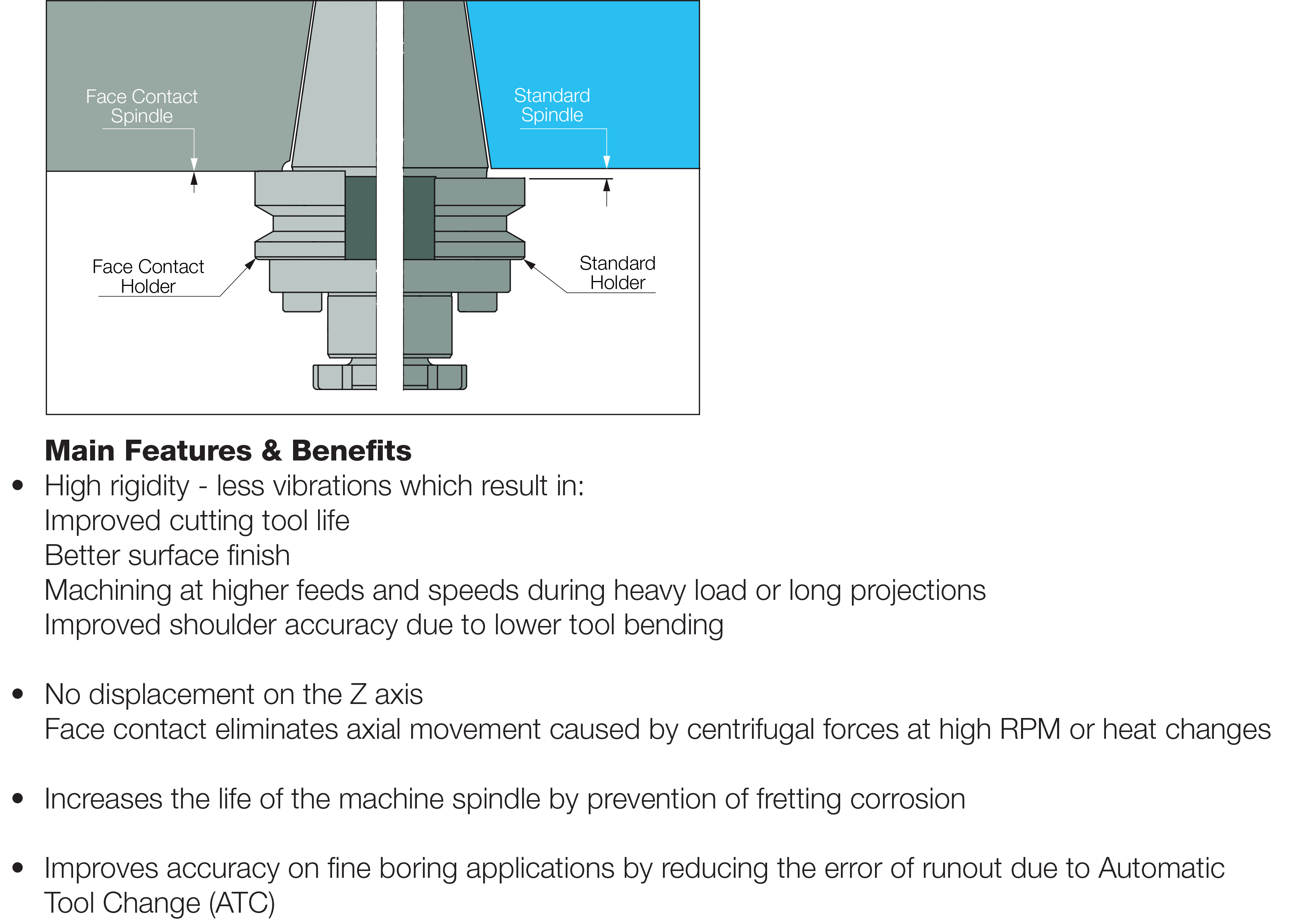

DIN1835 Form B endmills with BT MAS-403 face contact AD tapered shanks.

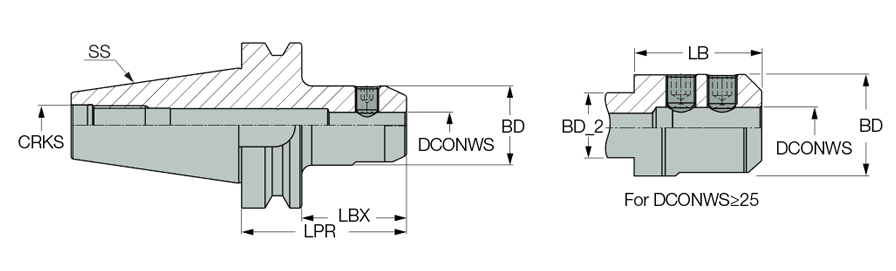

| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Tool Type | BT |
| Body Diameter (BD) | 52 mm | Body Material | Steel |
| Protruding Length (LPR) | 80 mm | Connection Code Machine Side (CCMS) | BT |
| Measurement Type | Metric | Unit | M |
| Shank Size (SS) | 30 |
Product Features
| Family Description | DIN1835 Form B endmills with BT MAS-403 face contact AD tapered shanks. | FamilyName | BT-FC-EM |
| Remarks | For adaptation details, click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
1.1600
Name
End Mill Holders
FamilyName
BT-FC-EM
BrandName
Iscar
