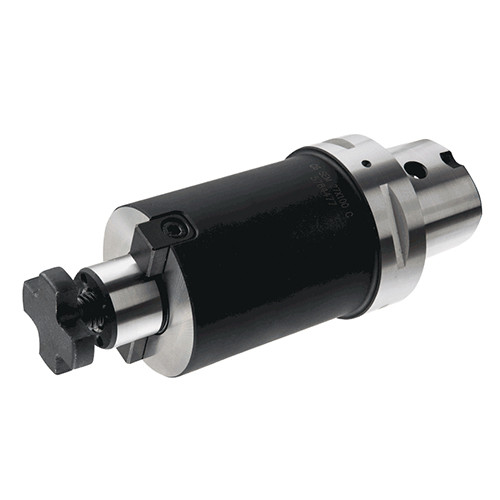

C4 SEM16X55 C
ISO 3937 shell mill holders with coolant holes and CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks

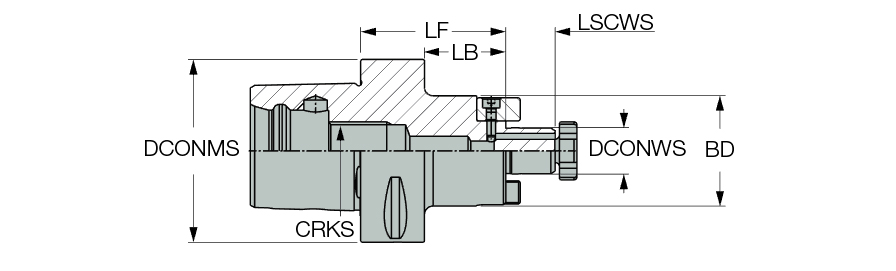

| Connection Diameter Machine Side (DCONMS) | 40 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Functional Length (LF) | 55 mm | Body Material | Steel |
| Body Diameter (BD) | 38 mm | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | ISO 3937 shell mill holders with coolant holes and CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks | FamilyName | C#-SEM-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6050
Name
Shell Mill Holders
FamilyName
C#-SEM-C
BrandName
Iscar
