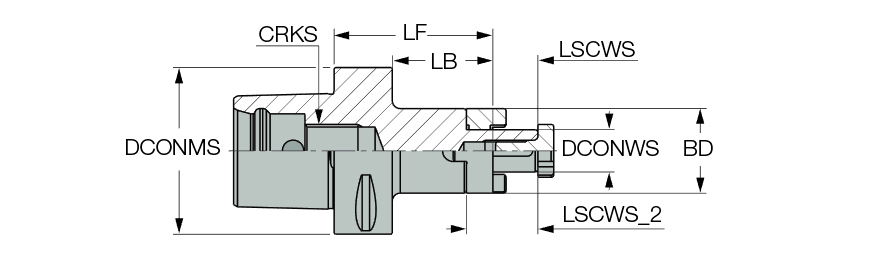

| Connection Diameter Machine Side (DCONMS) | 63 mm | Clamping Length Workpiece Side (LSCWS) | 27 mm |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Size (SS) | 63 | Measurement Type | Metric |
| Functional Length (LF) | 70 mm | Body Material | Steel |
| Body Diameter (BD) | 70 mm | Unit | M |
Product Features
| Family Description | DIN 6358 COMBI shell mill holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks. | FamilyName | C#-SEMC |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.5830
Name
Shell Mill Holders
FamilyName
C#-SEMC
BrandName
Iscar
