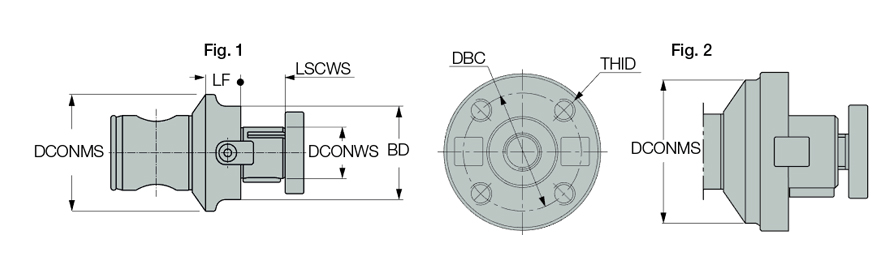

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 19 mm |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Tool Type | MB General Tools Holders |
| Shank Size (SS) | MB50 | Measurement Type | Metric |
| Functional Length (LF) | 15 mm | Body Material | Steel |
| Body Diameter (BD) | 40 mm | Unit | M |
Product Features
| Family Description | Shell mill holders with the MB modular boring connection system. | FamilyName | SMH MB |
| Remarks | When mounting slitting cutters, remove the drive dogs and use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.5580
Name

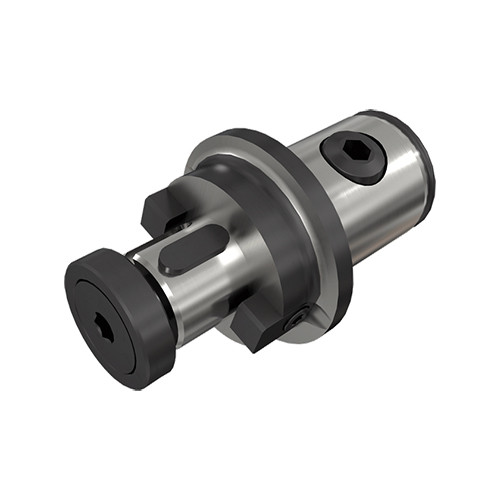

Shell Mill Holders
FamilyName
SMH MB
BrandName
Iscar
