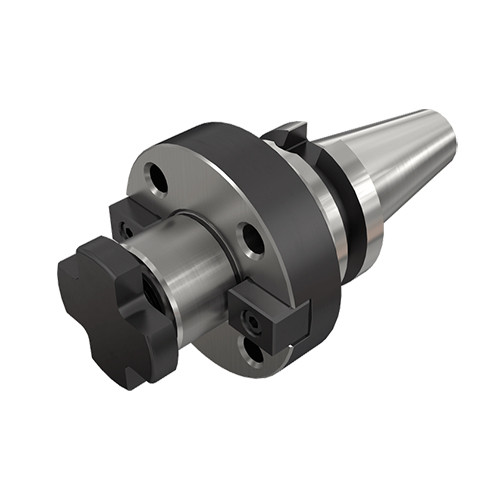

BT50 FM 40X50
DIN 6357 face mill holders with BT MAS-403 A/AD tapered shanks.

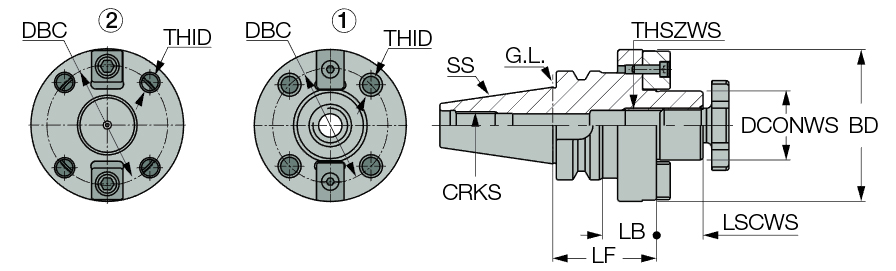

| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | BT |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Measurement Type | Metric |
| Shank Size (SS) | 50 | Body Material | Steel |
| Functional Length (LF) | 50 mm | Connection Code Machine Side (CCMS) | BT |
| Body Diameter (BD) | 88 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 27 mm |
Product Features
| Family Description | DIN 6357 face mill holders with BT MAS-403 A/AD tapered shanks. | FamilyName | BT-FM |
| Remarks | Peripheral clamping screws are not supplied. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
4.4960
Name
Shell Mill Holders
FamilyName
BT-FM
BrandName
Iscar
