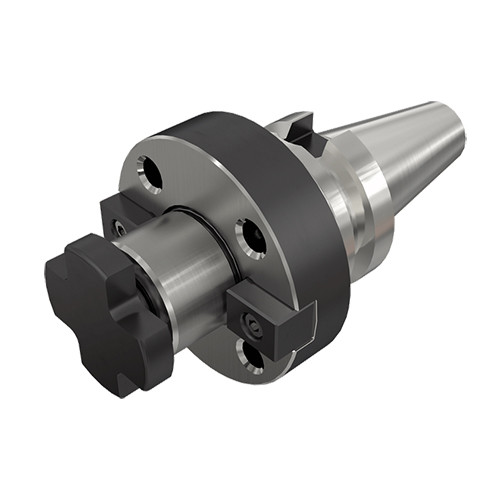

BT40 FC FM40
Face mill holders with BT MAS-403 face contact A/AD tapered shanks.

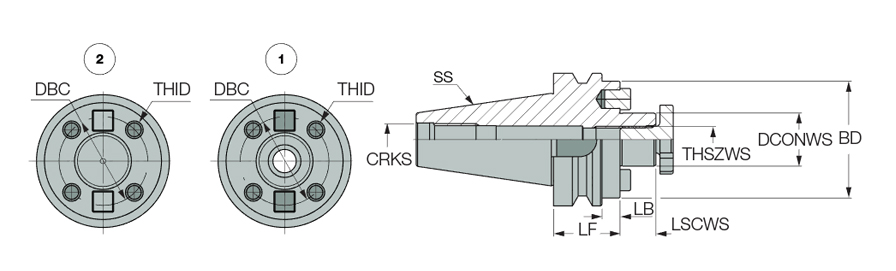

| Connection Diameter Machine Side (DCONMS) | 40 mm | Clamping Length Workpiece Side (LSCWS) | 27 mm |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Tool Type | BT |
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Functional Length (LF) | 60 mm | Body Material | Steel |
| Body Diameter (BD) | 88 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Face mill holders with BT MAS-403 face contact A/AD tapered shanks. | FamilyName | BT-FC-FM |
| Remarks | For adaptation details, click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
2.7600
Name
Shell Mill Holders
FamilyName
BT-FC-FM
BrandName
Iscar
