CAT50 SEM 1X4.000 C

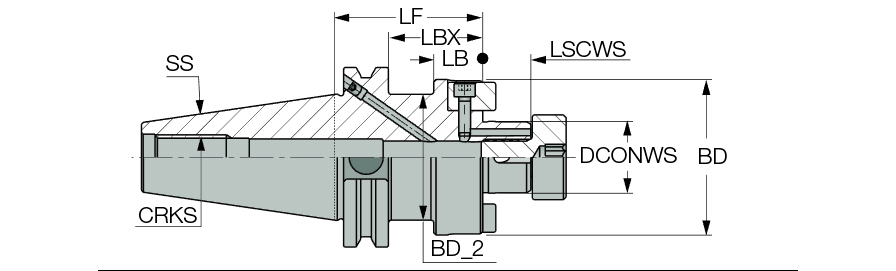

ISO 3937 shell mill holders with coolant holes and Caterpillar ADB tapered shanks. Symmetrical design, dynamically balanced for high RPM machining.
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Tool Type | DIN 69871 |
| Shank Size (SS) | 50 | Measurement Type | Inch |
| Functional Length (LF) | 4″ | Body Material | Steel |
| Body Diameter (BD) | 2.165″ | Connection Code Machine Side (CCMS) | CAT |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | I |
| Clamping Length Workpiece Side (LSCWS) | 0.669″ |
Product Features
| Family Description | ISO 3937 shell mill holders with coolant holes and Caterpillar ADB tapered shanks. Symmetrical design, dynamically balanced for high RPM machining. | FamilyName | CAT-SEM-C |
| COO | Turkey | BrandName | Iscar |
Shipping Info
Weight per item
9.8480
Name
Shell Mill Holders
FamilyName
CAT-SEM-C
BrandName
Iscar
