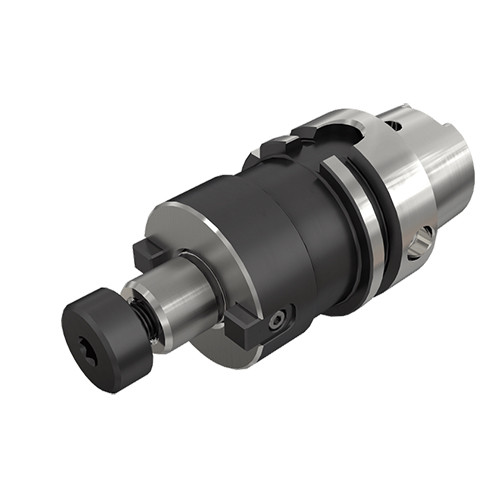

HSK A100 SEM3/4X3.000

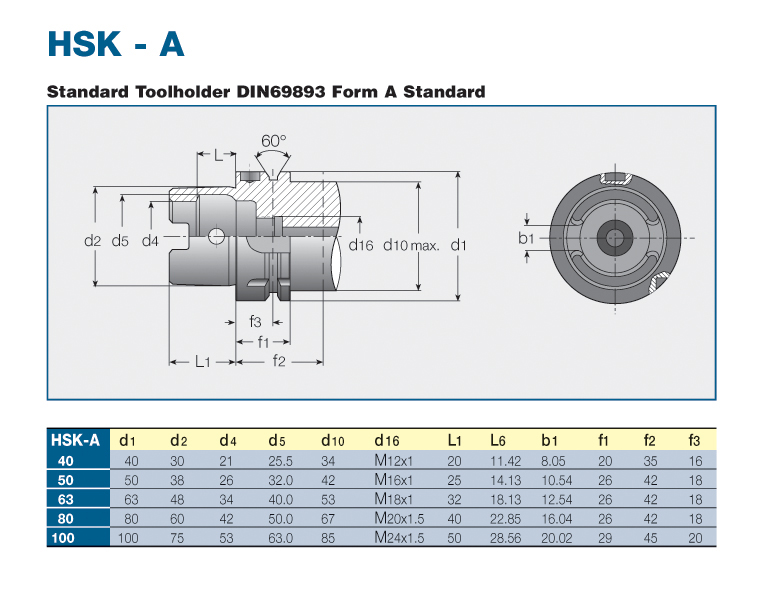

ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks.

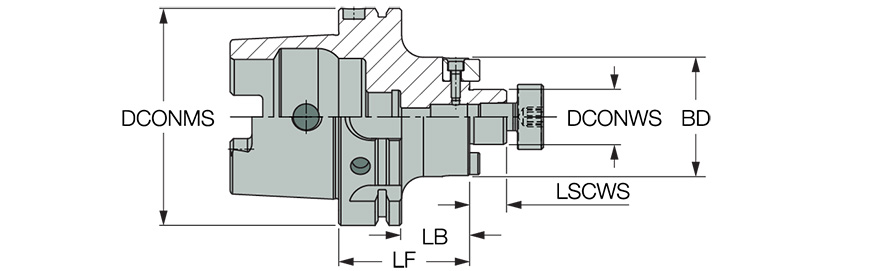

| Connection Diameter Machine Side (DCONMS) | 3.937″ | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Measurement Type | Inch |
| Shank Size (SS) | 100 | Body Material | Steel |
| Functional Length (LF) | 3″ | Connection Code Machine Side (CCMS) | HSK |
| Body Diameter (BD) | 1.77″ | Unit | I |
| Clamping Length Workpiece Side (LSCWS) | 0.669″ |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-SEM |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
6.0693
Name
Shell Mill Holders
FamilyName
HSK A-SEM
BrandName
Iscar
