DIN2080 50 SEM 16X 38

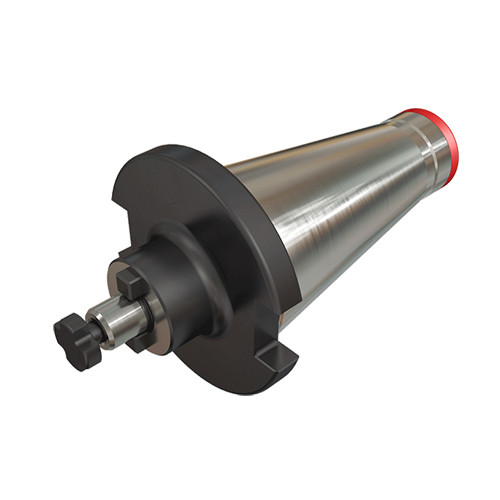

DIN 3937 shell mill holders with DIN 2080 A tapered shanks.

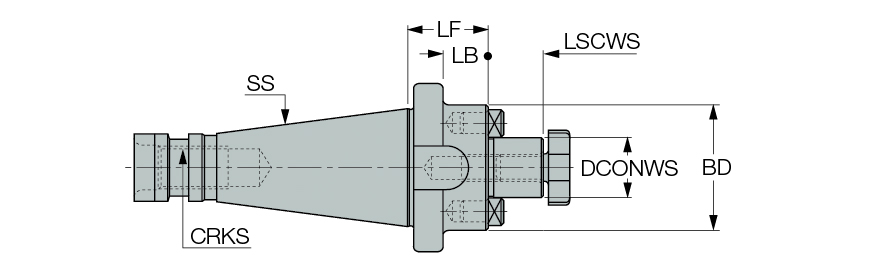

| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | DIN 2080 |
| Shank Size (SS) | 50 | Measurement Type | Metric |
| Functional Length (LF) | 38 mm | Body Material | Steel |
| Body Diameter (BD) | 38 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 17 mm |
Product Features
| Family Description | DIN 3937 shell mill holders with DIN 2080 A tapered shanks. | FamilyName | DIN2080-SEM |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
2.9200
Name
Shell Mill Holders
FamilyName
DIN2080-SEM
BrandName
Iscar
