C8 ER32X100
DIN 6499 ER collet chucks with CAMFIX (ISO 26623-1) exchangeable tapered shanks.

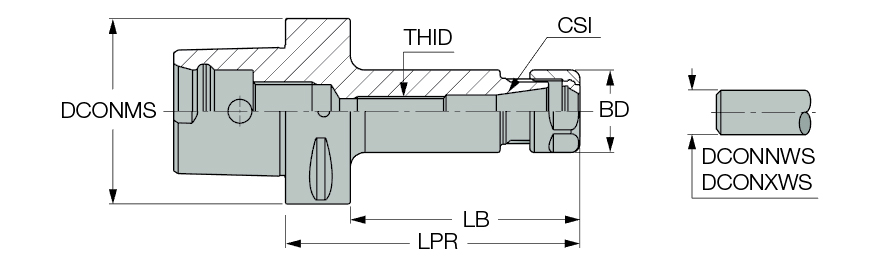

| Shank Size (SS) | 80 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Unit | M |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | DIN 6499 ER collet chucks with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | FamilyName | C#-ER |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
2.4660
Name
Collet Chucks
FamilyName
C#-ER
BrandName
Iscar
