CC MB16 ER11M

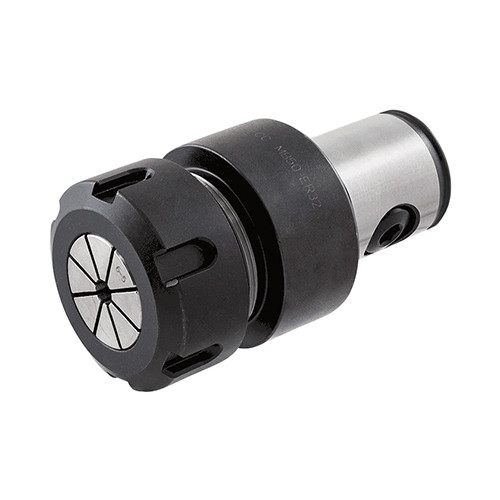

DIN 6499 ER collet chuck with the MB modular boring connection system.

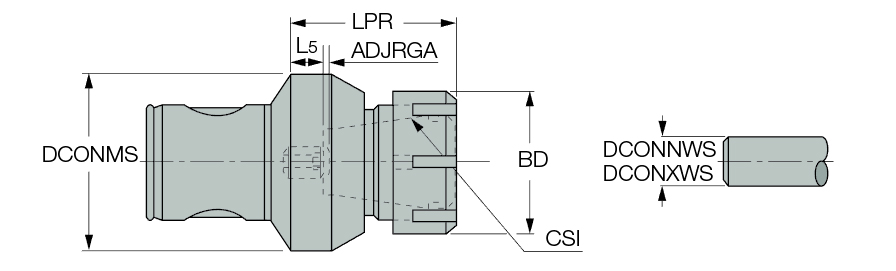

| Shank Size (SS) | MB16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Size (CSI) | ER11 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Body Diameter (BD) | 16 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 25 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Unit | M |
| Tool Type | MB General Tools Holders |
Product Features
| Family Description | DIN 6499 ER collet chuck with the MB modular boring connection system. | FamilyName | CC MB-ER |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
0.0460
Name
Collet Chucks
FamilyName
CC MB-ER
BrandName
Iscar
