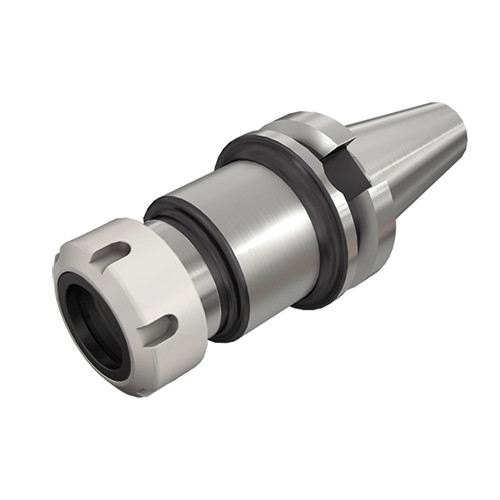

BT30 ER16X 70
DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks.
| Shank Size (SS) | 30 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Size (CSI) | ER16 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Diameter (BD) | 28 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 70 mm | Body Material | Steel |
| Tool Type | BT | Unit | M |
Product Features
| Family Description | DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks. | FamilyName | BT-ER |
| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | India |
Shipping Info
Weight per item
0.6030
Name
Collet Chucks
FamilyName
BT-ER
BrandName
Iscar
