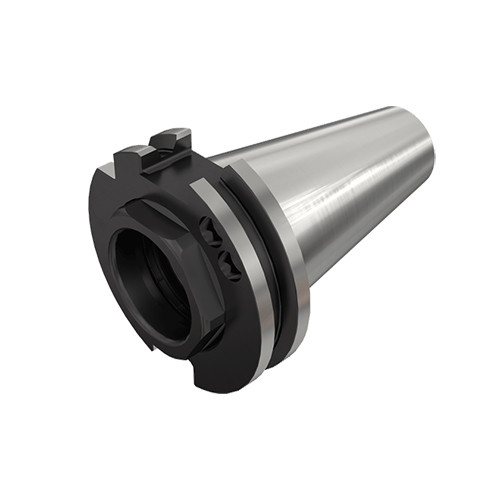

DIN69871 50 ER32 SHORT
SHORTIN short front end ER collet chucks with DIN 69871 form AD tapered shanks.

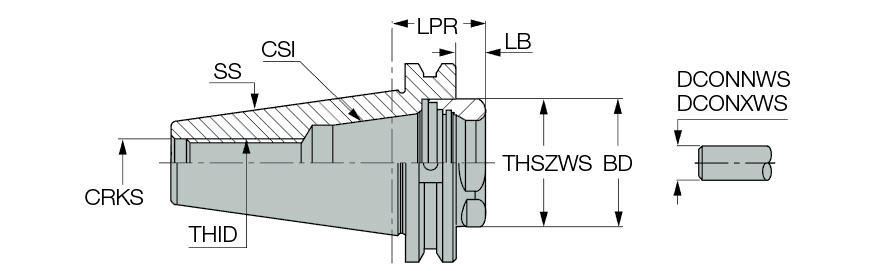

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 40 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 28.6 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Tool Type | DIN 69871 | Unit | M |
Product Features
| Family Description | SHORTIN short front end ER collet chucks with DIN 69871 form AD tapered shanks. | FamilyName | DIN69871-ER-SHORT |
| Remarks | For user guide, Click on More Info. | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
2.6280
Name
Collet Chucks
FamilyName
DIN69871-ER-SHORT
BrandName
Iscar
