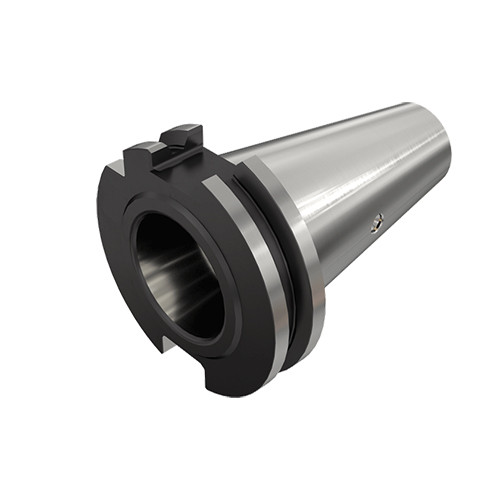

DIN69871 40 ER32 CLICK-IN

DIN69871 form AD tapered shanks to CLICKIN quick change connection adapters.

Item # ISC4509192

Brand: Iscar

Mfr#: 4509192

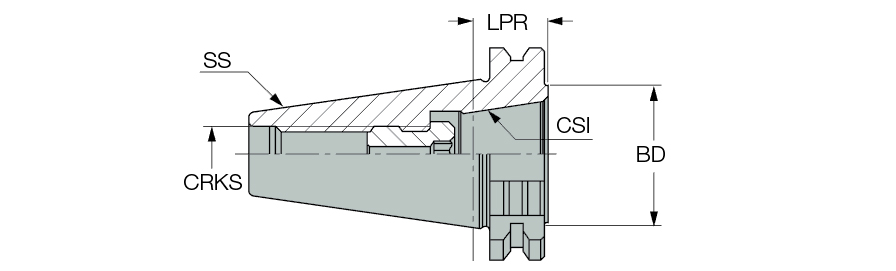

Shank Size (SS)	40	Measurement Type	Metric
Connection Size (CSI)	32 SRF	Body Material	Steel
Protruding Length (LPR)	20.1 mm	Connection Code Machine Side (CCMS)	DIN69871
Connection Diameter Machine Side (DCONMS)	40 mm	Unit	M
Tool Type	DIN 69871

Product Features

Family Description	DIN69871 form AD tapered shanks to CLICKIN quick change connection adapters.	FamilyName	DIN69871-ER-CLICK-IN
Remarks	Tightening torque: 24 Kgxm For Adaptation Click on More Info	BrandName	Iscar
COO	Israel

Weight per item

0.7620

Name

Collet Chucks

FamilyName

DIN69871-ER-CLICK-IN

BrandName

Iscar
