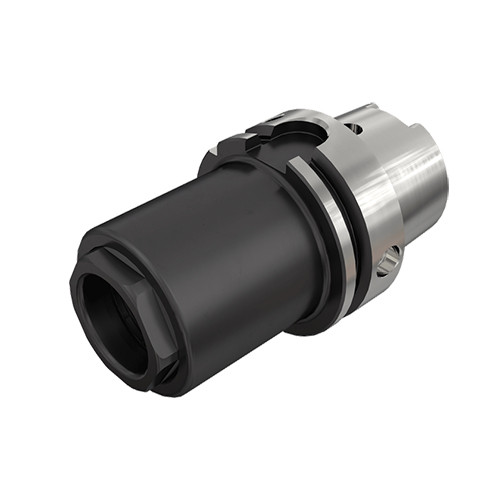

HSK A100 ER32 SHORT
Short DIN6499 ER collet chucks with HSK DIN69893 form A balanceable tapered shanks.
| Shank Size (SS) | 100 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 89.5 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK | Unit | M |
Product Features
| Family Description | Short DIN6499 ER collet chucks with HSK DIN69893 form A balanceable tapered shanks. | FamilyName | HSK A-ER-SHORT |

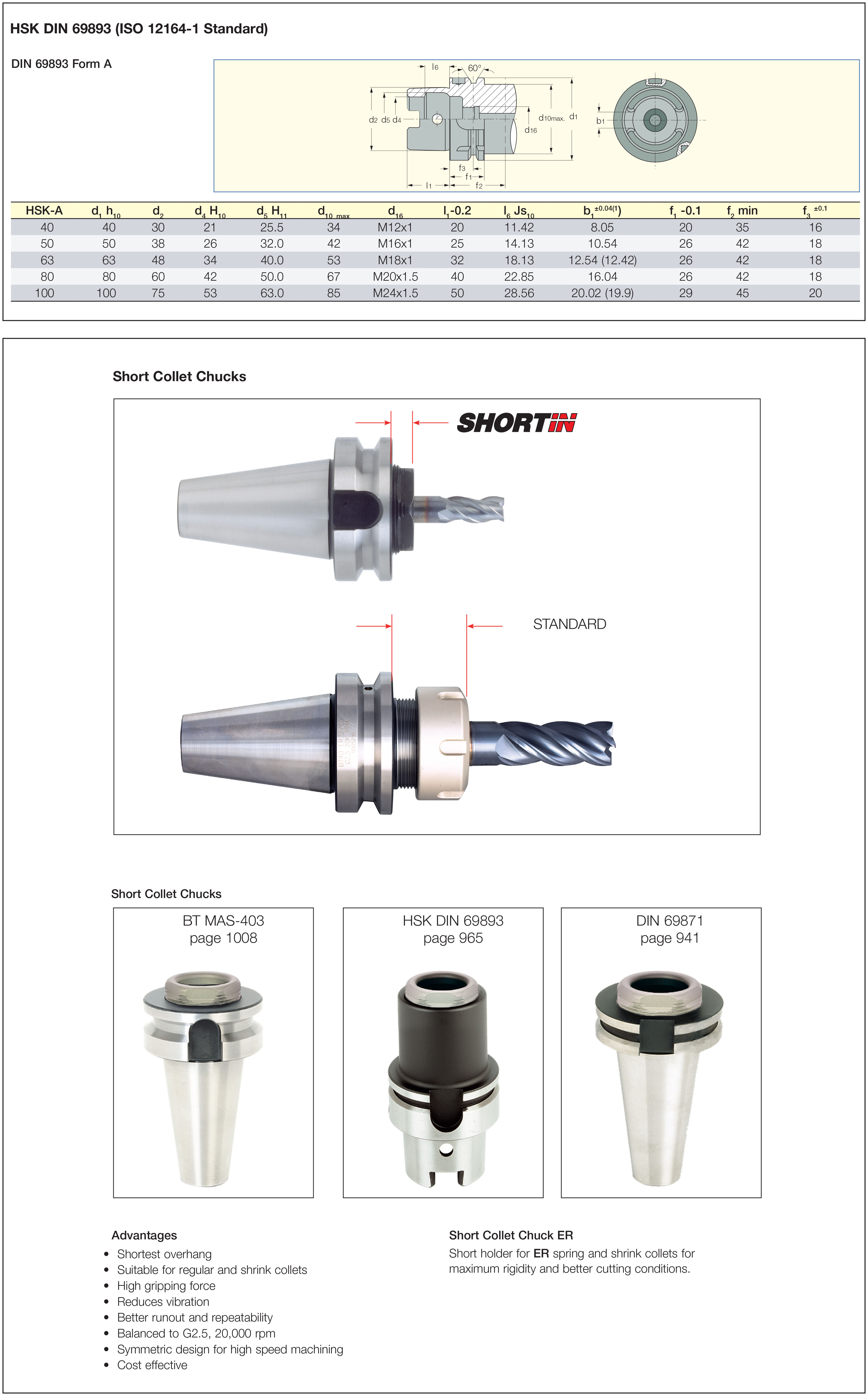

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
2.7230
Name
Collet Chucks
FamilyName
HSK A-ER-SHORT
BrandName
Iscar
