BT40 ER32 SHORT
SHORTIN short ER collet chucks with BT MAS-403 AD tapered shanks.

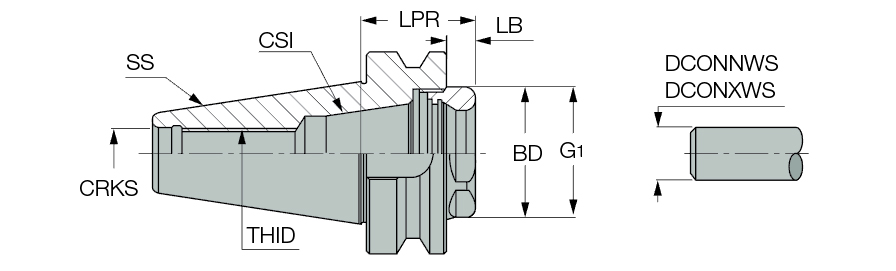

| Shank Size (SS) | 40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Connection Size (CSI) | ER32 | Measurement Type | Metric |
| Body Diameter (BD) | 40 mm | Body Material | Steel |
| Protruding Length (LPR) | 36.5 mm | Connection Code Machine Side (CCMS) | BT |
| Tool Type | BT | Unit | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
Product Features
| Family Description | SHORTIN short ER collet chucks with BT MAS-403 AD tapered shanks. | FamilyName | BT-ER-SHORT |
| Remarks | For Adaptation Click on More Info. B is the designation for coolant through flange. | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
0.8420
Name
Collet Chucks
FamilyName
BT-ER-SHORT
BrandName
Iscar
