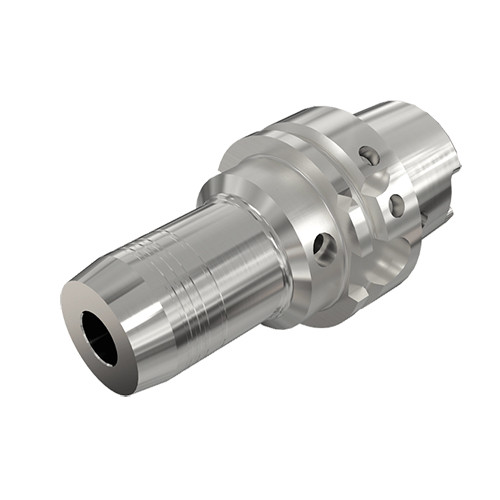

HSK A50 HYDRO 20X100
Hydraulic chucks with HSK DIN69893 form A tapered shanks. for Semi-Finish and finish applications

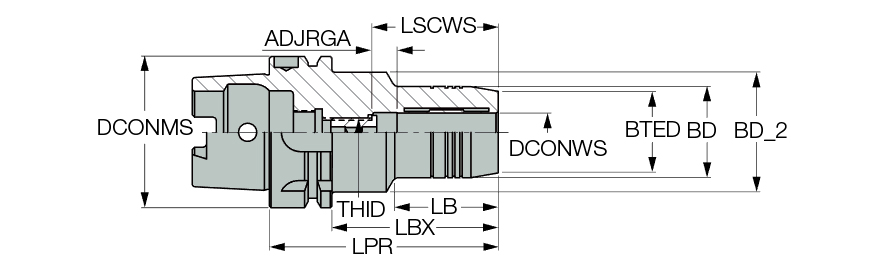

| Body Length (LB) | 74 mm | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Measurement Type | Metric |
| Body Diameter (BD) | 42 mm | Body Material | Steel |
| Protruding Length (LPR) | 100 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 50 | Unit | M |
Product Features
| Family Description | Hydraulic chucks with HSK DIN69893 form A tapered shanks. for Semi-Finish and finish applications | FamilyName | HSK A-HYDRO |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. A cooling tube must be used with coolant through HSK spindles (order separately). Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
1.0820
Name
Hydraulic Holders
FamilyName
HSK A-HYDRO
BrandName
Iscar
