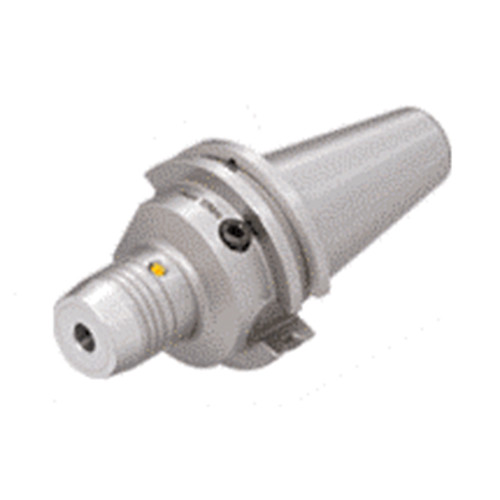

DIN69871 50 HYDRO 25X87
Hydraulic chucks with DIN69871 Form ADB shanks (HYDROFIT).for SemiFinish and finish applications

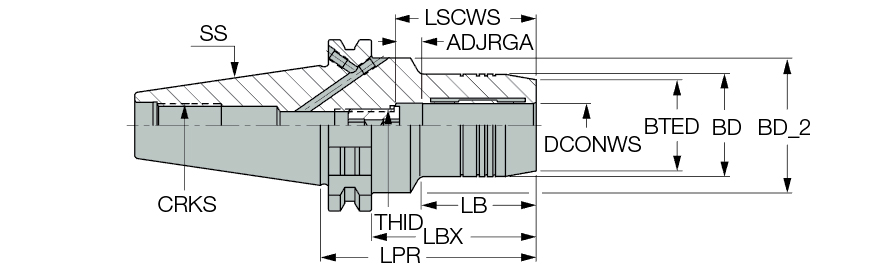

| Body Length (LB) | 52 mm | Tool Type | DIN 69871 |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Measurement Type | Metric |
| Body Diameter (BD) | 50 mm | Body Material | Steel |
| Protruding Length (LPR) | 87 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Shank Size (SS) | 50 | Unit | M |
Product Features
| Family Description | Hydraulic chucks with DIN69871 Form ADB shanks (HYDROFIT).for SemiFinish and finish applications | FamilyName | DIN69871-HYDRO |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately). The coolant passages in the B type flange are blocked with screws which can be removed when required. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
3.7360
Name
Hydraulic Holders
FamilyName
DIN69871-HYDRO
BrandName
Iscar
