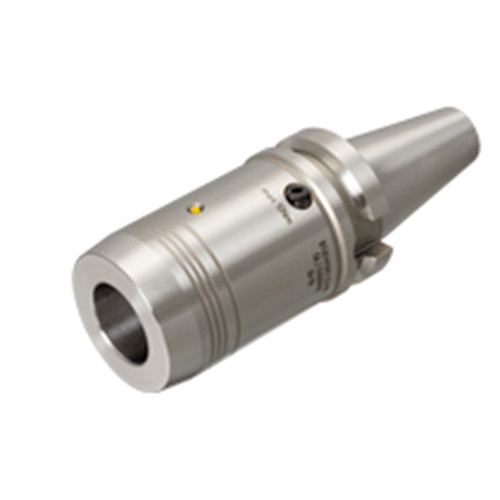

BT40 HYDRO 20X90
Hydraulic chucks with MASBT form AD shanks. for Semi-Finish and finish applications

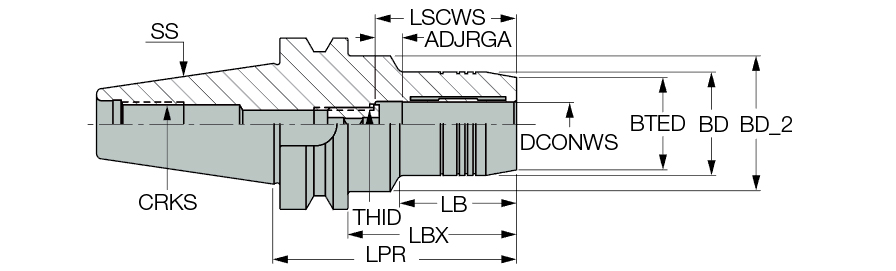

| Body Length (LB) | 47.5 mm | Tool Type | BT |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Measurement Type | Metric |
| Body Diameter (BD) | 42 mm | Body Material | Steel |
| Protruding Length (LPR) | 90 mm | Connection Code Machine Side (CCMS) | BT |
| Shank Size (SS) | 40 | Unit | M |
Product Features
| Family Description | Hydraulic chucks with MASBT form AD shanks. for Semi-Finish and finish applications | FamilyName | BT-HYDRO |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (order separately). The coolant passages in the B type flange are blocked with screws which can be removed when required. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
1.5800
Name
Hydraulic Holders
FamilyName
BT-HYDRO
BrandName
Iscar
