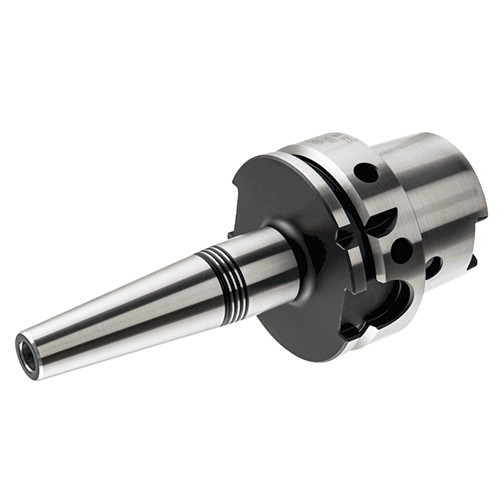

HSK A63 SRK 3/8X2.000
SHRINKIN, thermal chucking collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only.

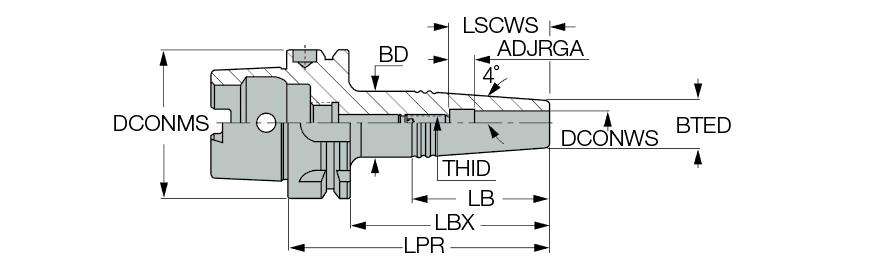

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Tool Type | HSK |
| Shank Size (SS) | 63 | Body Material | Steel |
| Body Length (LB) | 1.693″ | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 3.024″ | Unit | I |
| Overall Length (OAL) | 4.284″ |
Product Features
| Family Description | SHRINKIN, thermal chucking collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | FamilyName | HSK A-SRK |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). Remove preset screw for coolant through. For shank dimensions, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.8012
Name
Shrink Fit Holders
FamilyName
HSK A-SRK
BrandName
Iscar
