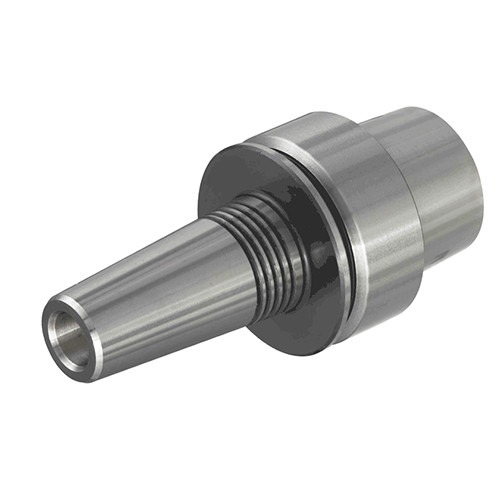

HSK E50 SRK10X45
SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only.

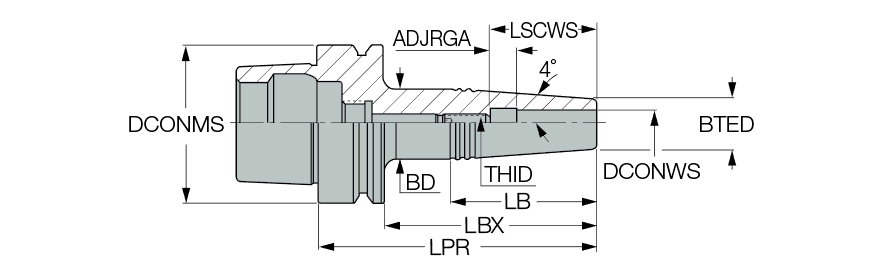

| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Tool Type | HSK |
| Shank Size (SS) | 50 | Body Material | Steel |
| Body Length (LB) | 42 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 71 mm | Unit | M |
| Overall Length (OAL) | 96 mm |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only. | FamilyName | HSK E-SRK |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5440
Name
Shrink Fit Holders
FamilyName
HSK E-SRK
BrandName
Iscar
