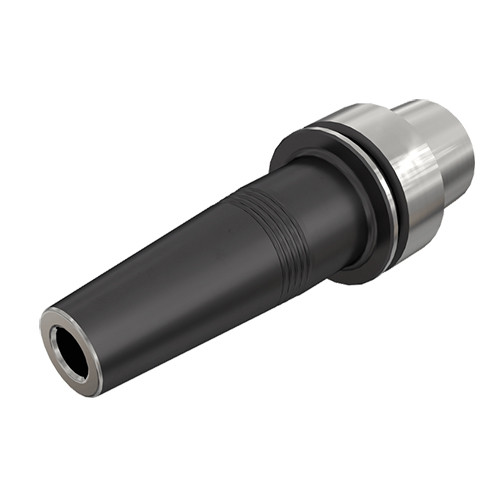

HSK E40 SRK3/8X1.750
SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only.

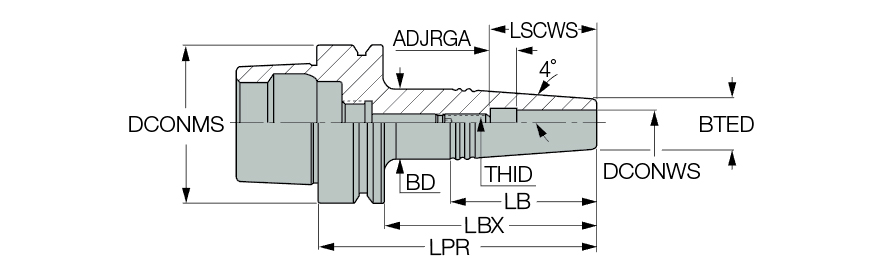

| Connection Diameter Machine Side (DCONMS) | 1.575″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Tool Type | HSK |
| Shank Size (SS) | 40 | Body Material | Steel |
| Body Length (LB) | 1.67″ | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 2.537″ | Unit | I |
| Overall Length (OAL) | 3.324″ |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only. | FamilyName | HSK E-SRK |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6746
Name
Shrink Fit Holders
FamilyName
HSK E-SRK
BrandName
Iscar
